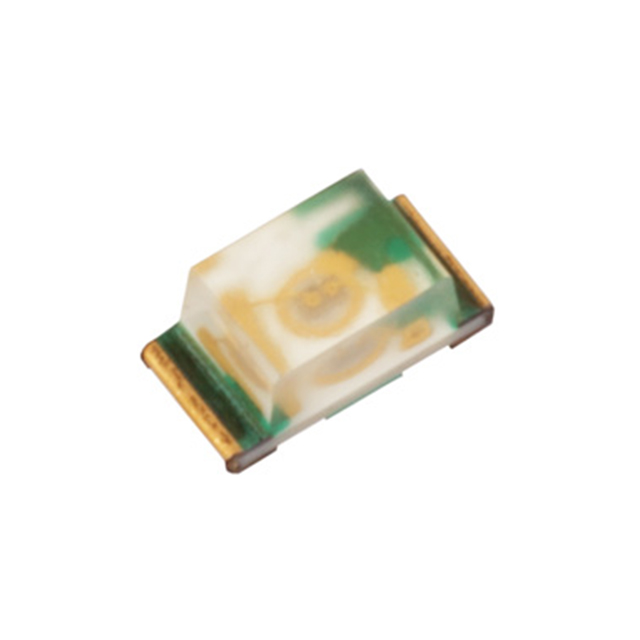

SG1111C-2405-TR

Part Number
SG1111C-2405-TR
Manufacturer Stanley Electric
Other Part Numbers
SG1111C-2405-TR-ND
Description LED GREEN DIFFUSED 1608 SMD
Detailed Description Green 530nm LED Indication - Discrete 3V 0603 (1608 Metric)

Product Attributes

Category
Manufacturer Stanley Electric
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case 0603 (1608 Metric)
Color Green
Size / Dimension 1.60mm L x 0.80mm W
Mounting Type Surface Mount
Millicandela Rating 90mcd
Configuration Independent
Voltage - Forward (Vf) (Typ) 3V
Lens Color White
Current - Test 5mA
Viewing Angle 140°
Height (Max) 0.80mm
Wavelength - Peak 525nm
Wavelength - Dominant 530nm
Supplier Device Package 1608
Lens Transparency Diffused
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 0.80mm

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
