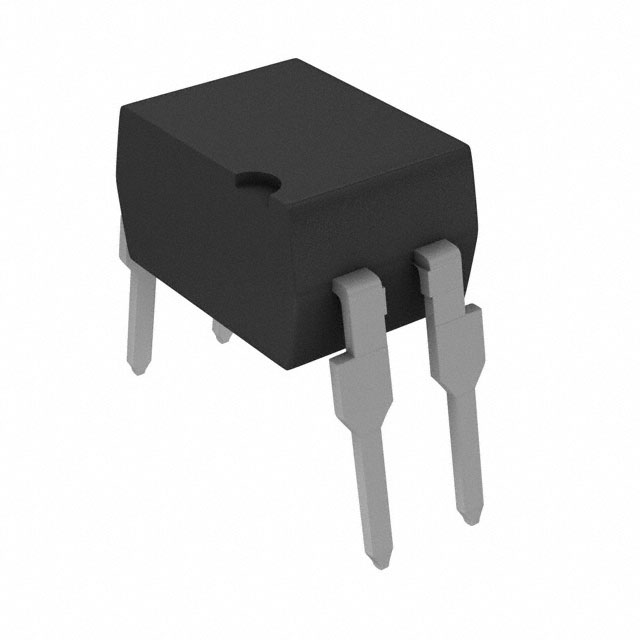

SFH655A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	SFH655A
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	SFH655A-ND
Description	OPTOISOLATOR 5.3KV DARL 4DIP
Detailed Description	Optoisolator Darlington Output 5300Vrms 1 Channel 4-DIP

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series
Packaging		Tube
Part Status		Obsolete
Package / Case		4-DIP (0.300", 7.62mm)
Output Type		Darlington
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.15V
Input Type		DC
Current - Output / Channel		125mA
Voltage - Isolation		5300Vrms
Current Transfer Ratio (Min)		600% @ 1mA
Vce Saturation (Max)		1V
Supplier Device Package		4-DIP
Voltage - Output (Max)		55V
Turn On / Turn Off Time (Typ)		16µs, 15µs
Rise / Fall Time (Typ)		14µs, 14µs
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
