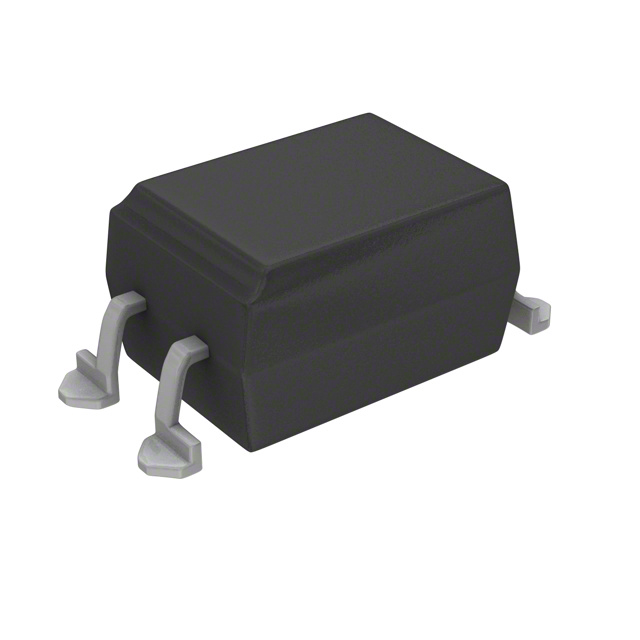

SFH6286-3T _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	SFH6286-3T
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	751-1360-2-ND 751-1360-1-ND 751-1360-6-ND SFH6286-3TGITR-ND SFH6286-3TGIDKR 751-1360-2 SFH6286-3TGICT SFH62863T 751-1360-1 751-1360-6 SFH6286-3TGICT-ND SFH6286-3TGIDKR-ND SFH6286-3TGITR
Description	OPTOISOLATOR 5.3KV TRANS 4-SMD
Detailed Description	Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.1V
Input Type		AC, DC
Current - Output / Channel		50mA
Voltage - Isolation		5300Vrms
Current Transfer Ratio (Min)		100% @ 1mA
Vce Saturation (Max)		400mV
Current Transfer Ratio (Max)		320% @ 1mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		55V
Turn On / Turn Off Time (Typ)		6µs, 5.5µs
Rise / Fall Time (Typ)		3.5µs, 5µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
