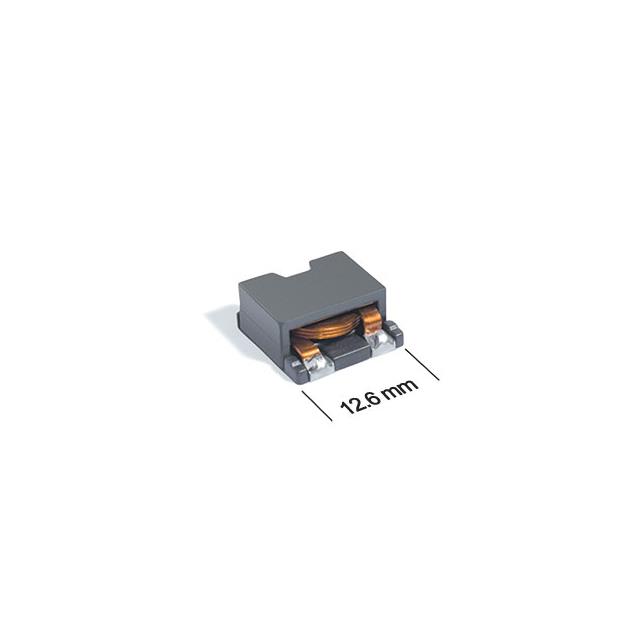

SER1360-802KLD

Part Number
SER1360-802KLD
Manufacturer COILCRAFT
Other Part Numbers
2457-SER1360-802KLD-ND
2457-SER1360-802KLD
Description FIXED IND 8UH 7.6A 10.81MOHM SM
Detailed Description 8 µH Shielded Wirewound Inductor 7.6 A 10.81mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
SER1360
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.500" L x 0.496" W (12.70mm x 12.60mm)
Mounting Type Surface Mount
Shielding Shielded
Type Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 10.81mOhm Max
Frequency - Self Resonant 26MHz
Ratings AEC-Q200
Current - Saturation (Isat) 7.5A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.228" (5.80mm)
Inductance 8 µH
Current Rating (Amps) 7.6 A

Documents & Media

RESOURCE TYPE LINK
Datasheets SER1360-802KLD

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
