SE100PWTLG-M3/I

Part Number
SE100PWTLG-M3/I
Manufacturer Vishay
Other Part Numbers
112-SE100PWTLG-M3/ITR-ND
112-SE100PWTLG-M3/ITR
Description 10A, 400V, STD RECT, SLIMDPAK 2L
Detailed Description Diode 400 V 2.9A Surface Mount SlimDPAK
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Vishay
Series
Packaging
Tape & Reel (TR)
Part Status Active

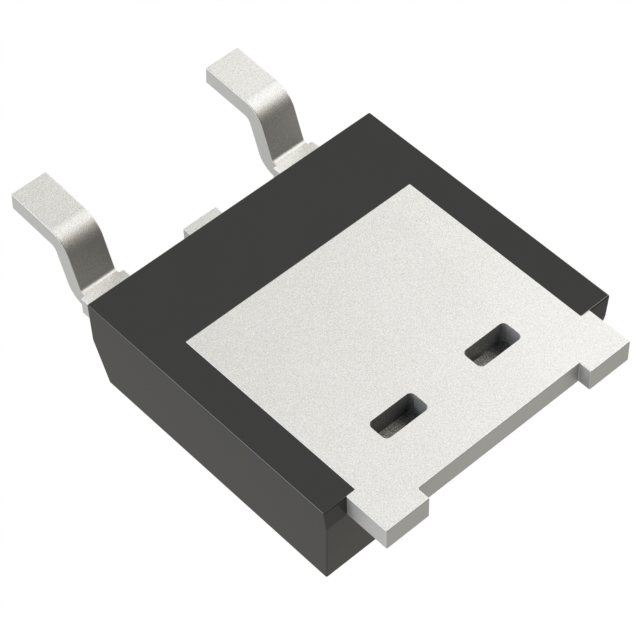

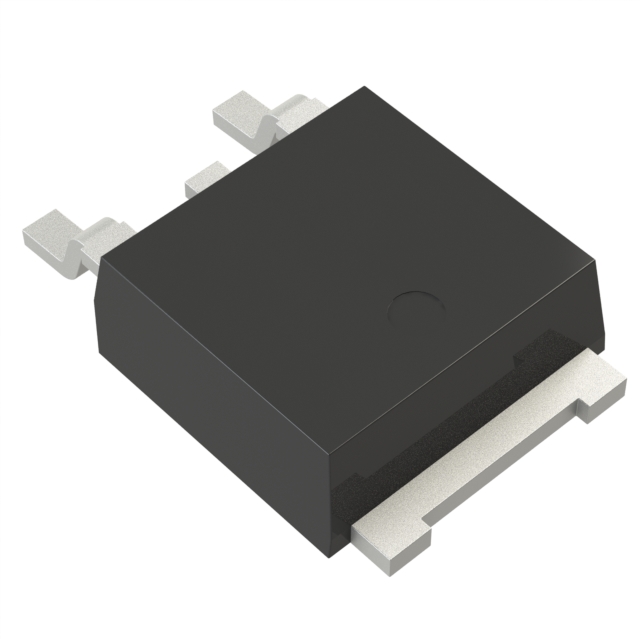

Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 300 ns
Technology Standard
Capacitance @ Vr, F 96pF @ 4V, 1MHz
Current - Average Rectified (Io) 2.9A
Supplier Device Package SlimDPAK
Operating Temperature - Junction -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max) 400 V
Voltage - Forward (Vf) (Max) @ If 960 mV @ 10 A
Current - Reverse Leakage @ Vr 5 µA @ 400 V

Documents & Media

RESOURCE TYPE LINK
Datasheets SE100PWTLG-M3/I

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
