SD10-1R0-R

Part Number
SD10-1R0-R
Manufacturer PowerStor (Eaton)
Other Part Numbers
283-SD10-1R0-RTR-ND
283-SD10-1R0-RCT-ND
283-SD10-1R0-RDKR-ND
-875-SD10-1R0-RCT
283-SD10-1R0-RTR
513-1168-6
-875-SD10-1R0-RTR-ND
SD101R0R
SD10-1R0
283-SD10-1R0-RCT
513-1168-2
513-1168-1
SD10-1R0-ND
513-1168-1-ND
513-1168-2-ND
283-SD10-1R0-RDKR
-875-SD10-1R0-RTR
513-1168-6-ND
Description FIXED IND 1UH 1.93A 44.8MOHM SMD

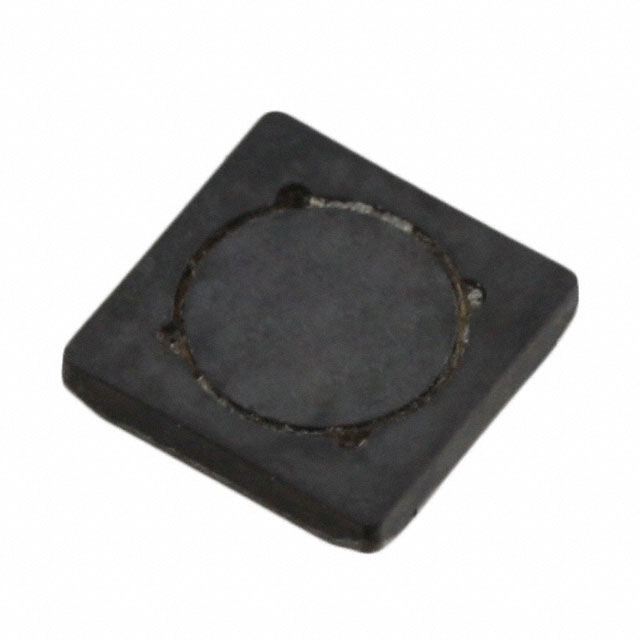

Detailed Description 1 µH Shielded Drum Core, Wirewound Inductor 1.93 A 44.8mOhm Nonstandard
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer PowerStor (Eaton)
Series
SD
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 44.8mOhm
Current - Saturation (Isat) 2.25A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.039" (1.00mm)
Inductance 1 µH
Current Rating (Amps) 1.93 A

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant
