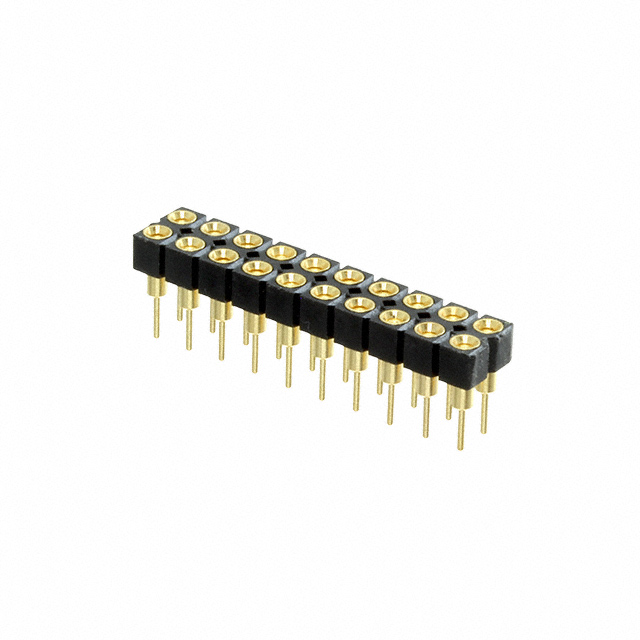

SD-110-G-2 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	SD-110-G-2
Manufacturer	Samtec, Inc.
Other Part Numbers	SAM11666-ND SD-110-G-2-ND SAM11666
Description	CONN RCPT 20POS 0.1 GOLD PCB
Detailed Description	20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Samtec, Inc.
Series		SD
Packaging		Tube
Part Status		Active
Connector Type		Receptacle
Mounting Type		Through Hole
Number of Positions		20
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Contact Material		Beryllium Copper
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		10.0µin (0.25µm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		10.0µin (0.25µm)
Contact Shape		Circular
Contact Length - Post		0.125" (3.18mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.100" (2.54mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		SD-110-G-2

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
