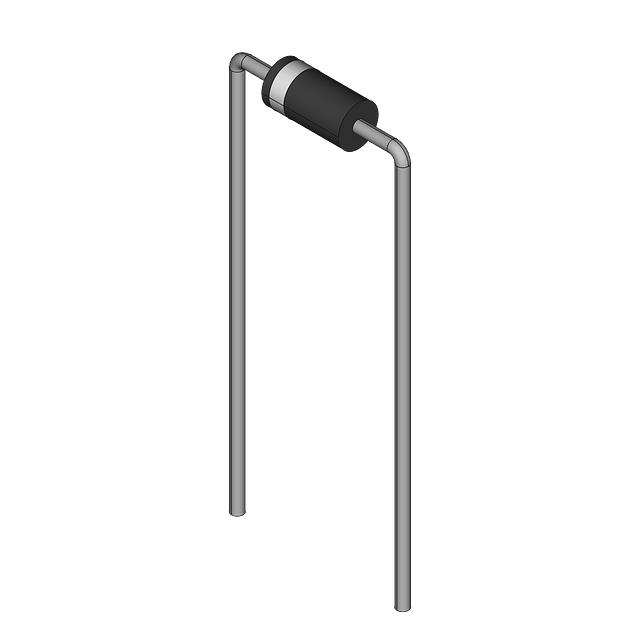

SB130

Part Number
SB130
Manufacturer Fairchild Semiconductor
Other Part Numbers
2156-SB130-ND
2156-SB130
FAIFSCSB130
Description RECTIFIER DIODE, SCHOTTKY, 1A, 3
Detailed Description Diode 30 V 1A Through Hole DO15/DO204AC

Product Attributes

Category
Manufacturer Fairchild Semiconductor
Series
Packaging
Bulk
Part Status Active
Package / Case DO-204AC, DO-15, Axial
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Schottky
Current - Average Rectified (Io) 1A
Supplier Device Package DO15/DO204AC
Operating Temperature - Junction -50°C ~ 150°C
Voltage - DC Reverse (Vr) (Max) 30 V
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Current - Reverse Leakage @ Vr 500 µA @ 30 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
