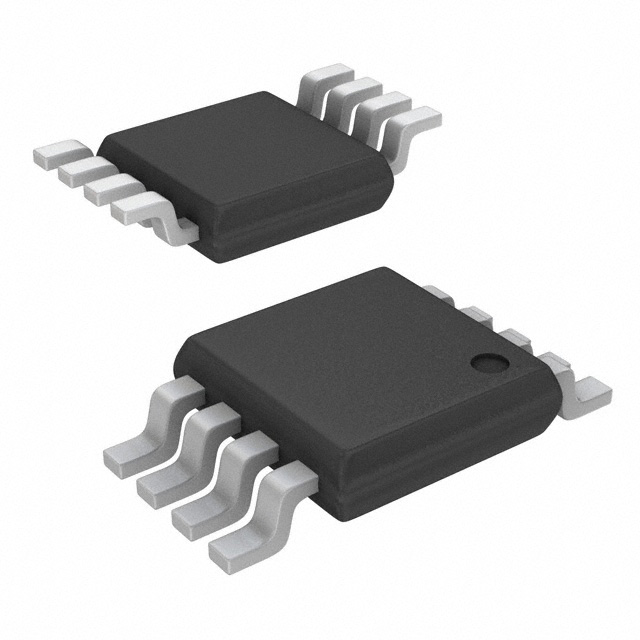

SA56004CDP,118

SA56004CDP,118

Part Number	SA56004CDP,118
Manufacturer	NXP Semiconductors
Other Part Numbers	568-3334-2-ND 568-3334-1 568-3334-2 SA56004CDP118 568-3334-6 SA56004CDP-T 935274565118
Description	SENSOR DIGITAL -40C-125C 8TSSOP
Detailed Description	Temperature Sensor Digital, Local/Remote -40°C ~ 125°C 10 b 8-TSSOP
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Temperature Sensors Analog and Digital Output
Manufacturer		NXP Semiconductors
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Features		Output Switch, Programmable Limit
Package / Case		8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Output Type		I2C/SMBus
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		3V ~ 5.5V
Sensor Type		Digital, Local/Remote
Resolution		10 b
Supplier Device Package		8-TSSOP
Test Condition		60°C ~ 100°C (-40°C ~ 125°C)
Accuracy - Highest (Lowest)		±2°C (±3°C)
Sensing Temperature - Local		-40°C ~ 125°C
Sensing Temperature - Remote		-40°C ~ 125°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SA56004CDP,118
Datasheets		NXP USA Inc RoHS Cert
Datasheets		NXP USA Inc REACH
Datasheets		All Dev Label Update 15/Dec/2020

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
