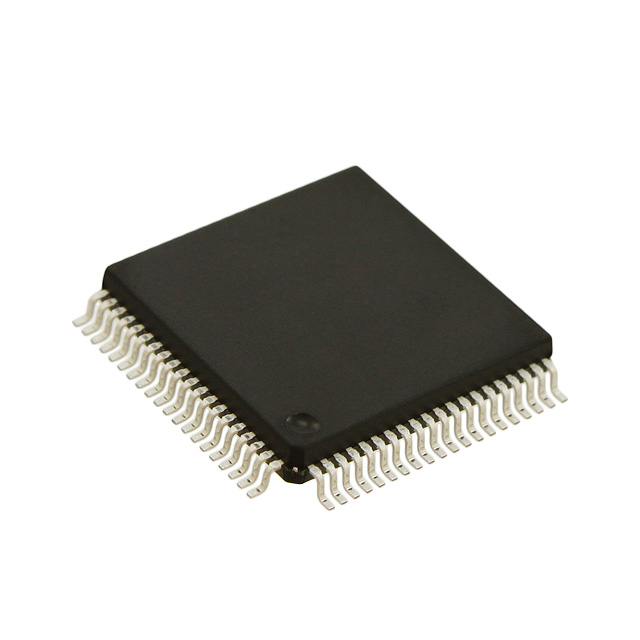

S9S12P64J0MQK _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	S9S12P64J0MQK
Manufacturer	NXP Semiconductors
Other Part Numbers	568-14296-ND S9S12P64J0MQK-ND 935315299557 568-14296
Description	IC MCU 16BIT 64KB FLASH 80QFP
Detailed Description	HCS12 HCS12 Microcontroller IC 16-Bit 32MHz 64KB (64K x 8) FLASH 80-QFP (14x14)
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		NXP Semiconductors
Series		HCS12
Packaging		Tray
Part Status		Active
Package / Case		80-QFP
Mounting Type		Surface Mount
Speed		32MHz
Program Memory Size		64KB (64K x 8)
RAM Size		4K x 8
Operating Temperature		-40°C ~ 125°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
EEPROM Size		4K x 8
Core Processor		HCS12
Data Converters		A/D 10x12b
Core Size		16-Bit
Voltage - Supply (Vcc/Vdd)		1.72V ~ 5.5V
Connectivity		CANbus, SCI, SPI
Peripherals		LVD, POR, PWM, WDT
Supplier Device Package		80-QFP (14x14)
Number of I/O		64
DigiKey Programmable		Not Verified

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
