S9S08DZ32F1MLC

Part Number
S9S08DZ32F1MLC
Manufacturer NXP Semiconductors
Other Part Numbers
S9S08DZ32F1MLC-ND
Description IC MCU 8BIT 32KB FLASH 32LQFP
Detailed Description S08 S08 Microcontroller IC 8-Bit 40MHz 32KB (32K x 8) FLASH 32-LQFP (7x7)
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
S08
Packaging
Tray
Part Status Obsolete

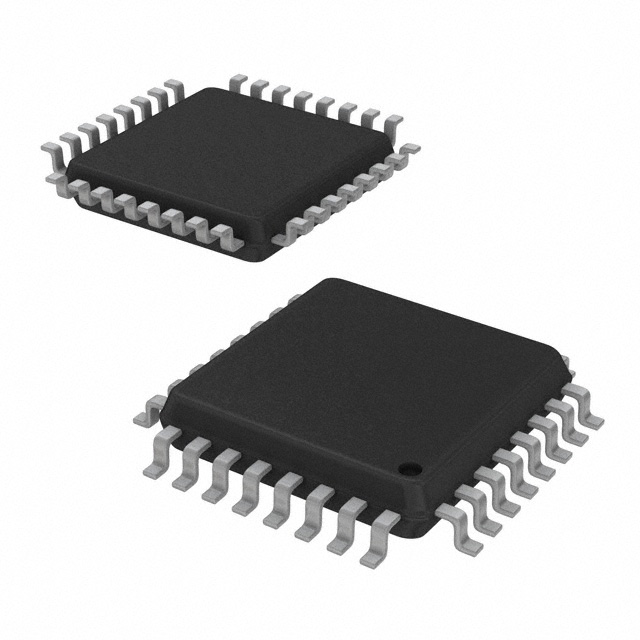

Package / Case 32-LQFP
Mounting Type Surface Mount
Speed 40MHz
Program Memory Size 32KB (32K x 8)
RAM Size 2K x 8
Operating Temperature -40°C ~ 125°C (TA)
Oscillator Type External
Program Memory Type FLASH
EEPROM Size 1K x 8
Core Processor S08
Data Converters A/D 10x12b
Core Size 8-Bit
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Connectivity CANbus, I2C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Supplier Device Package 32-LQFP (7x7)
Number of I/O 25
DigiKey Programmable Not Verified

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN 3A991A2
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
