S6S3RP

S6S3RP

Part Number	S6S3RP
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	S6S3RP-ND -S6S3RP
Description	SCR 600V 800MA COMPAK

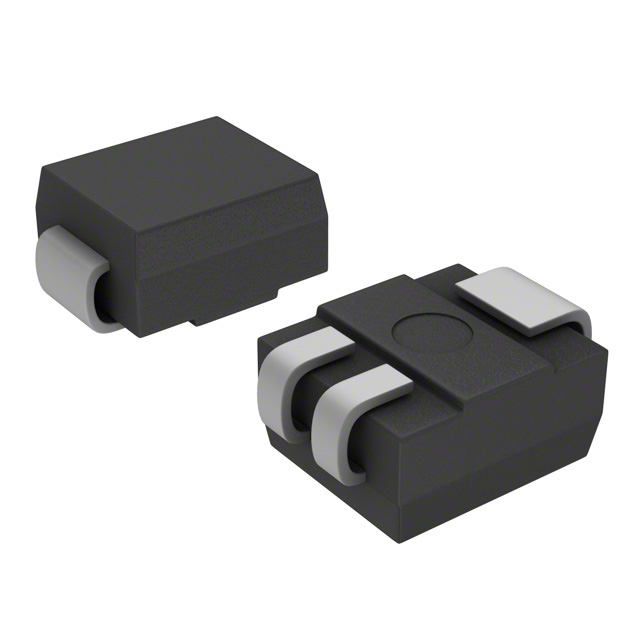

Detailed Description	SCR 600 V 800 mA Sensitive Gate Surface Mount Compak
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		Wickmann / Littelfuse
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		DO-214AA, SMB (3 Leads), Compak
Mounting Type		Surface Mount
SCR Type		Sensitive Gate
Operating Temperature		-40°C ~ 110°C
Current - Hold (Ih) (Max)		8 mA
Current - Gate Trigger (Igt) (Max)		500 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)		16A, 20A
Current - On State (It (AV)) (Max)		510 mA
Voltage - Gate Trigger (Vgt) (Max)		800 mV
Voltage - On State (Vtm) (Max)		1.7 V
Current - Off State (Max)		1 µA
Supplier Device Package		Compak
Current - On State (It (RMS)) (Max)		800 mA
Voltage - Off State		600 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		S6S3RP
Datasheets		Packing Options

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
