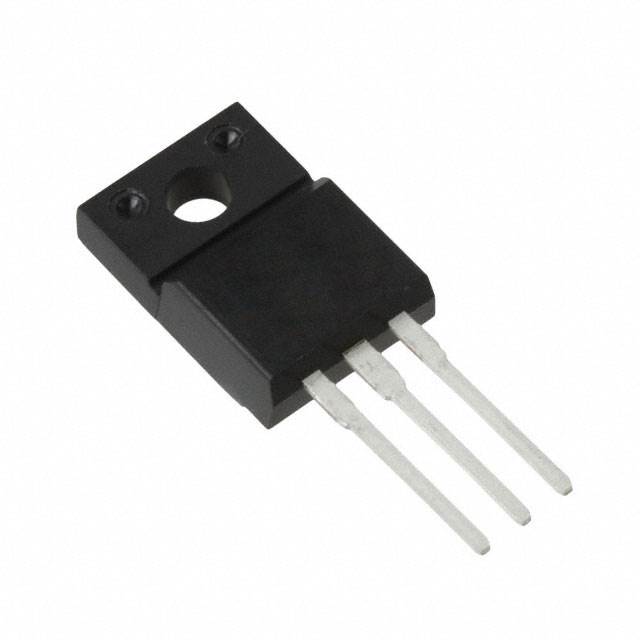

S4040RTP

S4040RTP

Part Number	S4040RTP
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	F7302-ND F7302 S4040RTP-ND -S4040RTP
Description	SCR 400V 40A TO220
Detailed Description	SCR 400 V 40 A Standard Recovery Through Hole TO-220 Non-Isolated Tab
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		Wickmann / Littelfuse
Series
Packaging		Tube
Part Status		Active

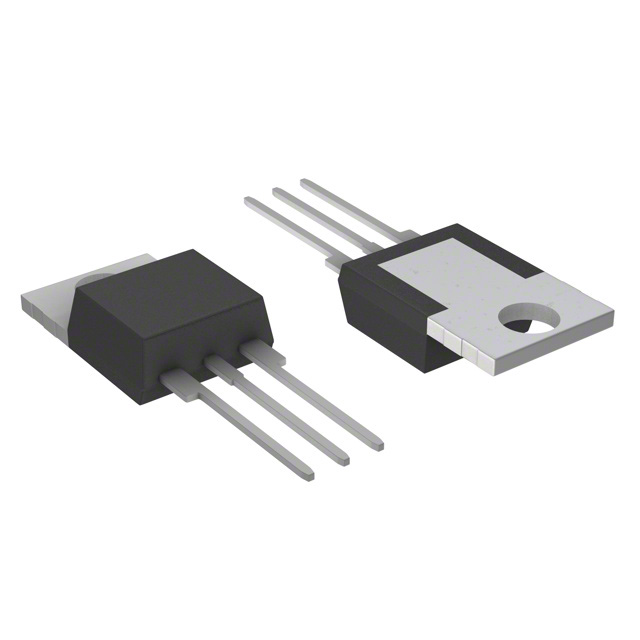

Package / Case		TO-220-3
Mounting Type		Through Hole
SCR Type		Standard Recovery
Operating Temperature		-40°C ~ 125°C
Current - Hold (Ih) (Max)		60 mA
Current - Gate Trigger (Igt) (Max)		40 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		430A, 520A
Current - On State (It (AV)) (Max)		25 A
Voltage - Gate Trigger (Vgt) (Max)		1.5 V
Voltage - On State (Vtm) (Max)		1.8 V
Current - Off State (Max)		10 µA
Supplier Device Package		TO-220 Non-Isolated Tab
Current - On State (It (RMS)) (Max)		40 A
Voltage - Off State		400 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		S4040RTP

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
