Part Number |
S4010LS3
|
---|---|
Manufacturer | Wickmann / Littelfuse |
Other Part Numbers |
S4010LS3-ND
-S4010LS3
|
Description | SCR 400V 10A TO220 |
Detailed Description | SCR 400 V 10 A Sensitive Gate Through Hole TO-220 Isolated Tab |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Wickmann / Littelfuse | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Discontinued | |

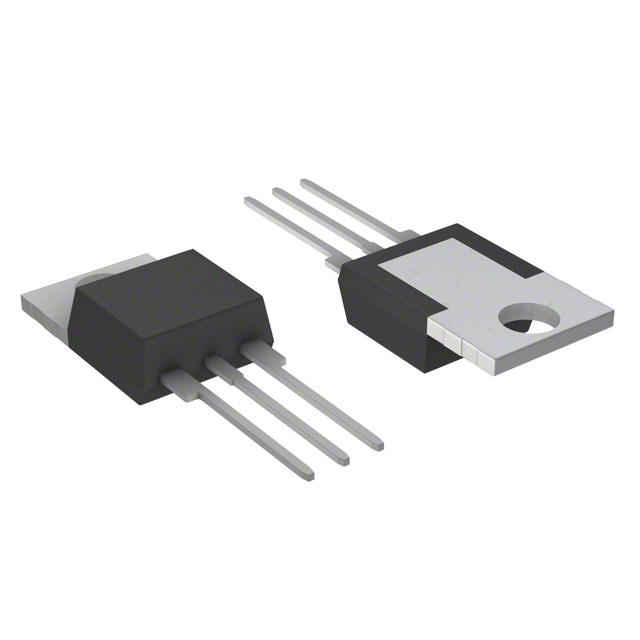

Package / Case | TO-220-3 Isolated Tab | |
Mounting Type | Through Hole | |
SCR Type | Sensitive Gate | |
Operating Temperature | -40°C ~ 110°C | |
Current - Hold (Ih) (Max) | 8 mA | |
Current - Gate Trigger (Igt) (Max) | 500 µA | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A | |
Current - On State (It (AV)) (Max) | 6.4 A | |
Voltage - Gate Trigger (Vgt) (Max) | 800 mV | |
Voltage - On State (Vtm) (Max) | 1.6 V | |
Current - Off State (Max) | 5 µA | |
Supplier Device Package | TO-220 Isolated Tab | |
Current - On State (It (RMS)) (Max) | 10 A | |
Voltage - Off State | 400 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | S4010LS3 | |
Datasheets | Lead Form Dimensions | |
Datasheets | Packing Options |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
California Prop 65 | California Prop 65 Information | |
ECCN | EAR99 | |
HTSUS | 8541.30.0080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | ROHS3 Compliant |
