S2008L

Part Number
S2008L
Manufacturer Wickmann / Littelfuse
Other Part Numbers
S2008L-ND
Description SCR 200V 8A TO220
Detailed Description SCR 200 V 8 A Standard Recovery Through Hole TO-220 Isolated Tab
Datasheet Datasheet

Product Attributes

Category
Manufacturer Wickmann / Littelfuse
Series
Packaging
Bulk
Part Status Obsolete

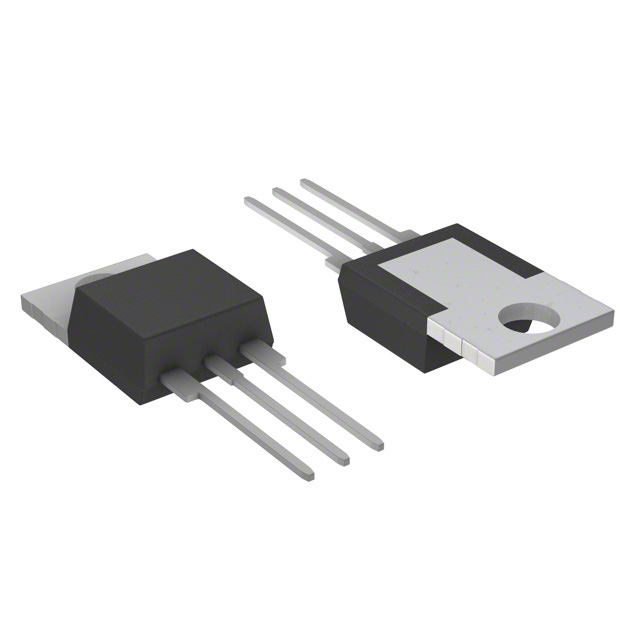

Package / Case TO-220-3 Isolated Tab
Mounting Type Through Hole
SCR Type Standard Recovery
Operating Temperature -40°C ~ 125°C
Current - Hold (Ih) (Max) 30 mA
Current - Gate Trigger (Igt) (Max) 15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 83A, 100A
Current - On State (It (AV)) (Max) 5.1 A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Voltage - On State (Vtm) (Max) 1.6 V
Current - Off State (Max) 10 µA
Supplier Device Package TO-220 Isolated Tab
Current - On State (It (RMS)) (Max) 8 A
Voltage - Off State 200 V

Documents & Media

RESOURCE TYPE LINK
Datasheets S2008L
Datasheets Sx01E & SxN1 Series
Datasheets Sxx08xSx, Sxx08x Series Datasheet

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
