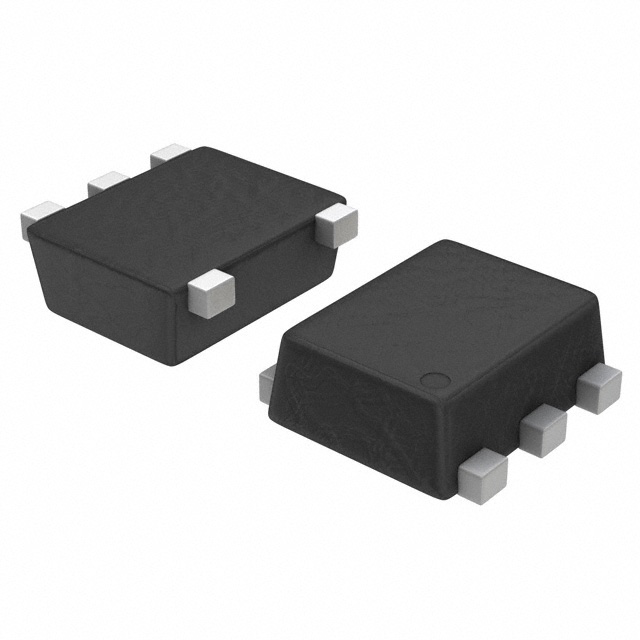

S-L2980A32PN-TF-G _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-L2980A32PN-TF-G
Manufacturer	ABLIC
Other Part Numbers	S-L2980A32PN-TF-G-ND
Description	IC REG LINEAR 3.2V 150MA 5SON
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 5-SON (2x1.7)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-L2980
Packaging		Tape & Reel (TR)
Part Status		Obsolete
Package / Case		5-SMD, Flat Leads
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		150mA
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		1 µA
Voltage - Input (Max)		10V
Number of Regulators		1
Supplier Device Package		5-SON (2x1.7)
Voltage - Output (Min/Fixed)		3.2V
Control Features		Enable
PSRR		70dB (1kHz)
Voltage Dropout (Max)		0.15V @ 50mA
Current - Supply (Max)		140 µA

RESOURCE TYPE		LINK
Datasheets		Solder Plating Material Chg 10/Dec/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
