S-8520A35MC-AVUT2G _ DC DC Switching Controllers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-8520A35MC-AVUT2G
Manufacturer	ABLIC
Other Part Numbers	S-8520A35MC-AVUT2G-ND
Description	IC REG CTRLR BUCK SOT23-5
Detailed Description	Buck Regulator Positive Output Step-Down DC-DC Controller IC SOT-23-5
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers
Manufacturer		ABLIC
Series
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs

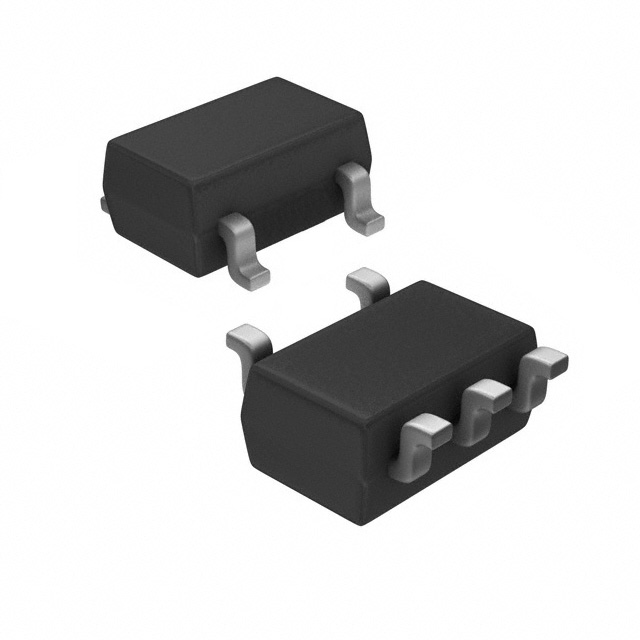

Package / Case		SC-74A, SOT-753
Output Type		Transistor Driver
Mounting Type		Surface Mount
Function		Step-Down
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		180kHz
Topology		Buck
Voltage - Supply (Vcc/Vdd)		2.5V ~ 10V
Supplier Device Package		SOT-23-5
Synchronous Rectifier		No
Control Features		Enable
Output Phases		1
Duty Cycle (Max)		100%
Clock Sync		No
Number of Outputs		1

RESOURCE TYPE		LINK
Datasheets		S-8520A35MC-AVUT2G
Datasheets		Solder Plating Material Chg 10/Dec/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
