S-8337ABIB-P8T1G _ DC DC Switching Controllers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-8337ABIB-P8T1G
Manufacturer	ABLIC
Other Part Numbers	S-8337ABIB-P8T1G-ND
Description	IC REG CTRLR BOOST 8SON
Detailed Description	Boost Regulator Positive Output Step-Up DC-DC Controller IC 8-SON (A) (2.9x2.8)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers
Manufacturer		ABLIC
Series
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs

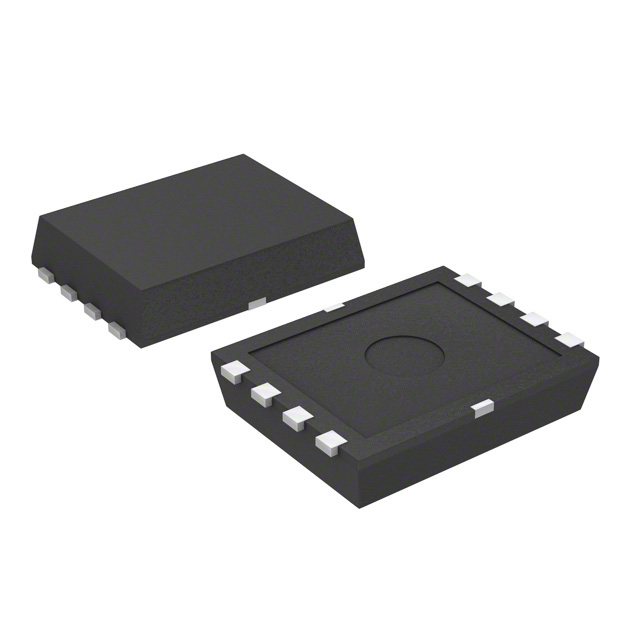

Package / Case		8-SMD, Flat Lead
Output Type		Transistor Driver
Mounting Type		Surface Mount
Function		Step-Up
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		257.4kHz ~ 1.134MHz
Topology		Boost
Voltage - Supply (Vcc/Vdd)		1.8V ~ 6V
Supplier Device Package		8-SON (A) (2.9x2.8)
Synchronous Rectifier		No
Control Features		Current Limit, Enable, Frequency Control
Output Phases		1
Duty Cycle (Max)		89%
Clock Sync		No
Number of Outputs		1

RESOURCE TYPE		LINK
Datasheets		S-8337ABIB-P8T1G
Datasheets		Solder Plating Material Chg 10/Dec/2018
Datasheets		All Dev Materials Chg 23/Mar/2020

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
