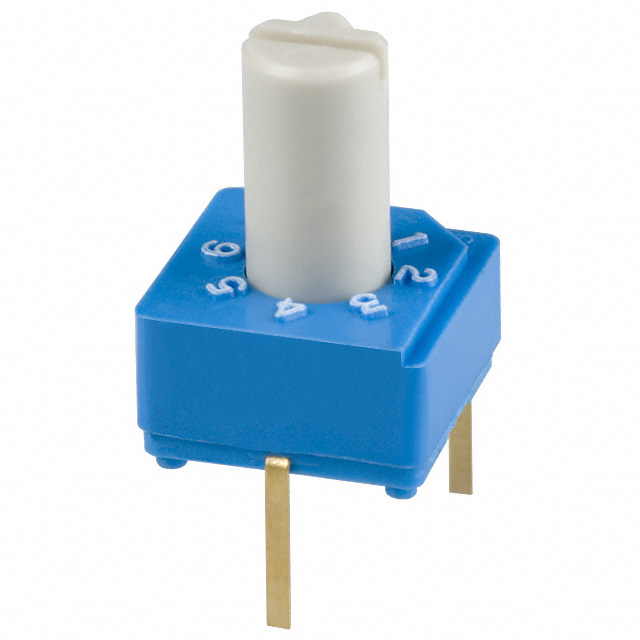

S-8130

Part Number
S-8130
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
563-1059-ND
563-1059
Description SW ROTARY DIP OCT COMP 0.1A 5V
Detailed Description Dip Switch Octal Complement 8 Position Through Hole Rotary with Shaft Actuator 100mA 5VDC
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
S-8000
Packaging
Bulk
Part Status Active
Contact Finish Gold
Voltage Rating 5VDC
Current Rating (Amps) 100mA
Mounting Type Through Hole
Pitch 0.100" (2.54mm), Full
Circuit Octal Complement
Operating Temperature -25°C ~ 70°C
Termination Style PC Pin
Actuator Type Rotary with Shaft
Height Above Board 0.390" (9.90mm)
Actuator Level Raised
Washable Yes
Contact Material Copper Alloy
Number of Positions 8

Documents & Media

RESOURCE TYPE LINK
Datasheets S-8130

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.50.9065
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
