S-812C56AY-B2-U

S-812C56AY-B2-U

Part Number	S-812C56AY-B2-U
Manufacturer	ABLIC
Other Part Numbers	S-812C56AY-B2-U-ND
Description	IC REG LINEAR 5.6V 75MA TO92-3
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 75mA TO-92-3
Manufacturer Standard Lead Time	16 weeks

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-812C
Packaging		Bulk
Part Status		Active

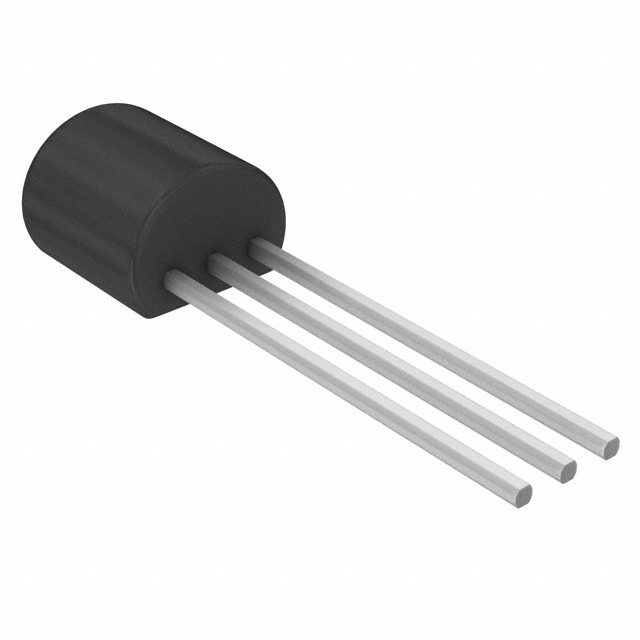

Package / Case		TO-226-3, TO-92-3 (TO-226AA)
Output Type		Fixed
Mounting Type		Through Hole
Current - Output		75mA
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		500 nA
Voltage - Input (Max)		16V
Number of Regulators		1
Supplier Device Package		TO-92-3
Voltage - Output (Min/Fixed)		5.6V
Voltage Dropout (Max)		0.23V @ 100mA
Current - Supply (Max)		2.5 µA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		S-812C56AY-B2-U
Datasheets		All Dev Materials Chg 23/Mar/2020
Datasheets		Solder Plating Material Chg 10/Dec/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
