S-19505AY2A-E8T1U4 _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-19505AY2A-E8T1U4
Manufacturer	ABLIC
Other Part Numbers	1662-S-19505AY2A-E8T1U4TR-ND 1662-S-19505AY2A-E8T1U4TR
Description	LINEAR IC
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 250mA 8-HSOPA
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-19505
Packaging		Tape & Reel (TR)
Part Status		Active

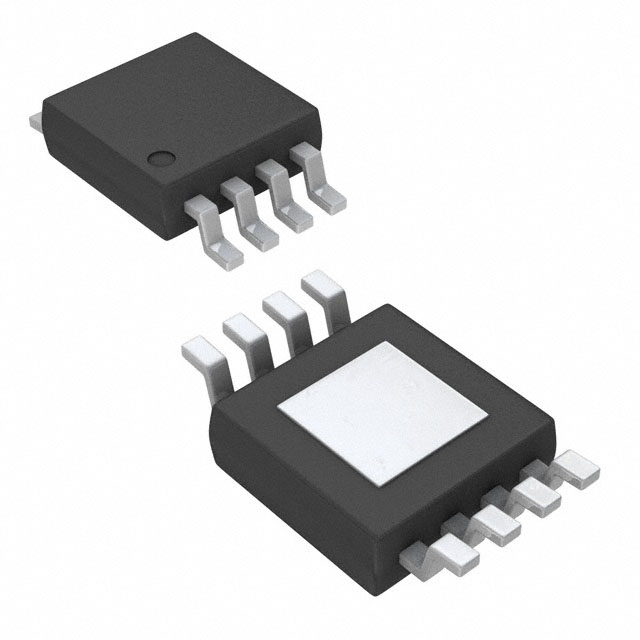

Package / Case		8-SOIC (0.154", 3.90mm Width) Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		250mA
Operating Temperature		-40°C ~ 125°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		12.5 µA
Voltage - Input (Max)		36V
Number of Regulators		1
Supplier Device Package		8-HSOPA
Voltage - Output (Min/Fixed)		3.3V
Control Features		Delay, Reset, Watchdog
Grade		Automotive
PSRR		65dB (100Hz)
Voltage Dropout (Max)		0.6V @ 250mA
Protection Features		Over Current, Over Temperature, Short Circuit
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		S-19505AY2A-E8T1U4

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
