S-19243A50H-U5T1U _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-19243A50H-U5T1U
Manufacturer	ABLIC
Other Part Numbers	1662-S-19243A50H-U5T1UTR-ND 1662-S-19243A50H-U5T1UTR
Description	LINEAR IC
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-89-5
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-19243xxxH
Packaging		Tape & Reel (TR)
Part Status		Active

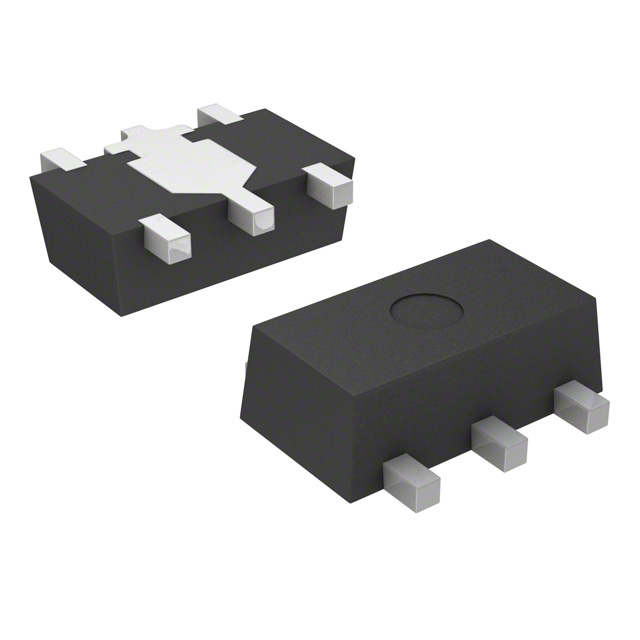

Package / Case		SOT-89-5/6
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		500mA
Operating Temperature		-40°C ~ 105°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		150 µA
Voltage - Input (Max)		10V
Number of Regulators		1
Supplier Device Package		SOT-89-5
Voltage - Output (Min/Fixed)		5V
Control Features		Enable, Soft Start
Grade		Automotive
PSRR		50dB (1kHz)
Voltage Dropout (Max)		0.09V @ 200mA
Protection Features		Over Current, Over Temperature, Short Circuit
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		S-19243A50H-U5T1U

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
