S-13A1B00-U5T1U3 _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-13A1B00-U5T1U3
Manufacturer	ABLIC
Other Part Numbers	S-13A1B00-U5T1U3-ND
Description	IC REG LINEAR POS ADJ 1A SOT89-5
Detailed Description	Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-89-5
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-13A1
Packaging		Tape & Reel (TR)
Part Status		Active

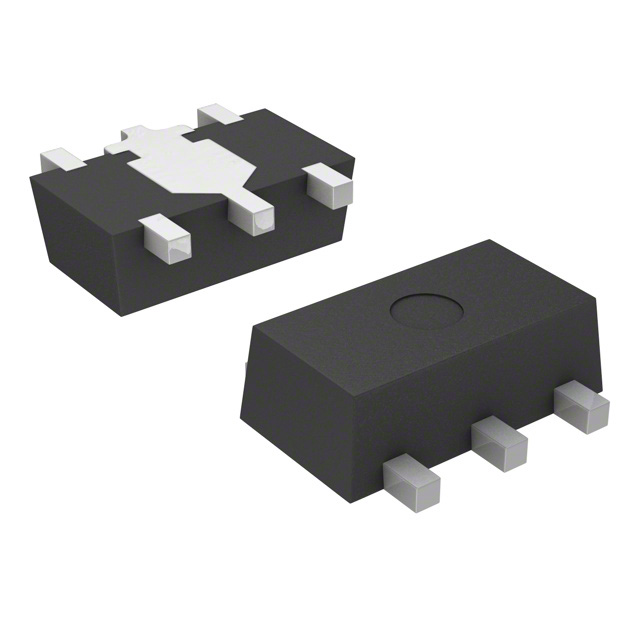

Package / Case		SOT-89-5/6
Output Type		Adjustable
Mounting Type		Surface Mount
Current - Output		1A
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		1 µA
Voltage - Input (Max)		5.5V
Number of Regulators		1
Supplier Device Package		SOT-89-5
Voltage - Output (Max)		5V
Voltage - Output (Min/Fixed)		1.05V
Control Features		Enable
PSRR		70dB (1kHz)
Voltage Dropout (Max)		0.58V @ 300mA
Protection Features		Inrush Current Limit, Over Current, Thermal Shutdown
Current - Supply (Max)		90 µA

RESOURCE TYPE		LINK
Datasheets		S-13A1B00-U5T1U3
Datasheets		Solder Plating Material Chg 10/Dec/2018
Datasheets		All Dev Materials Chg 23/Mar/2020

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
