S-1315D17-M5T1U3 _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-1315D17-M5T1U3
Manufacturer	ABLIC
Other Part Numbers	S-1315D17-M5T1U3-ND
Description	IC REG LINEAR 1.7V 200MA SOT23-5
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-5
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-1315
Packaging		Tape & Reel (TR)
Part Status		Last Time Buy

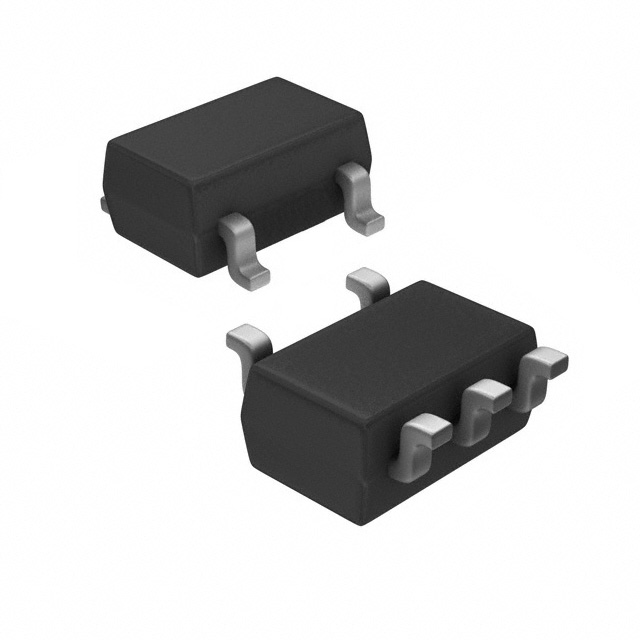

Package / Case		SC-74A, SOT-753
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		200mA
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		1 µA
Voltage - Input (Max)		5.5V
Number of Regulators		1
Supplier Device Package		SOT-23-5
Voltage - Output (Min/Fixed)		1.7V
Control Features		Enable
PSRR		60dB (1kHz)
Voltage Dropout (Max)		0.486V @ 200mA
Protection Features		Over Current
Current - Supply (Max)		13 µA

RESOURCE TYPE		LINK
Datasheets		S-1315 Series EOL 06/Mar/2024
Datasheets		Solder Plating Material Chg 10/Dec/2018
Datasheets		All Dev Materials Chg 23/Mar/2020

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
