S-1170B30PD-OTPTFG _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-1170B30PD-OTPTFG
Manufacturer	ABLIC
Other Part Numbers	S-1170B30PD-OTPTFG-ND
Description	IC REG LINEAR 3V 800MA 6HSON
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 800mA 6-HSON (A) (2.9x2.8)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-1170
Packaging		Tape & Reel (TR)
Part Status		Obsolete

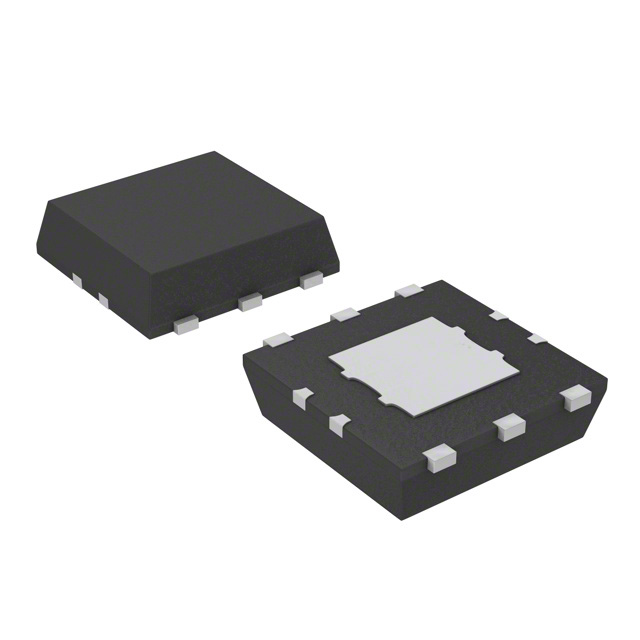

Package / Case		6-SMD, Flat Leads Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		800mA
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		1 µA
Voltage - Input (Max)		6.5V
Number of Regulators		1
Supplier Device Package		6-HSON (A) (2.9x2.8)
Voltage - Output (Min/Fixed)		3V
Control Features		Enable
PSRR		70dB (1kHz)
Voltage Dropout (Max)		0.18V @ 300mA
Protection Features		Over Current, Thermal Shutdown
Current - Supply (Max)		160 µA

RESOURCE TYPE		LINK
Datasheets		Solder Plating Material Chg 10/Dec/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
