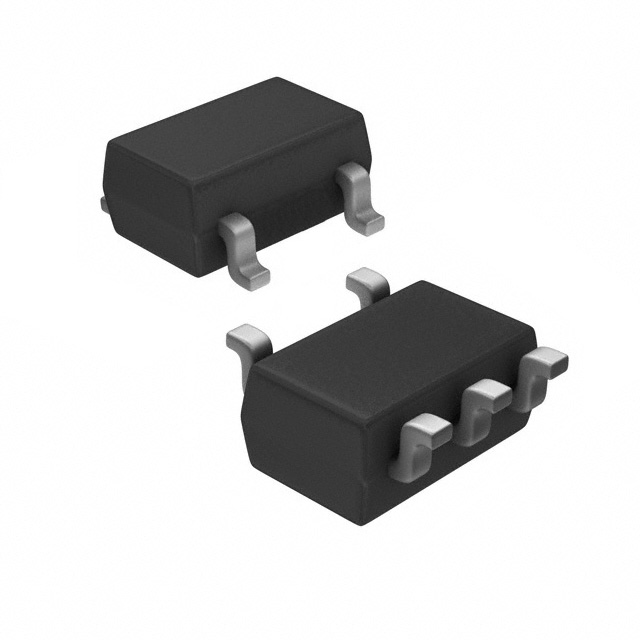

S-1167B42-M5T1G _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	S-1167B42-M5T1G
Manufacturer	ABLIC
Other Part Numbers	S-1167B42-M5T1G-ND
Description	IC REG LINEAR 4.2V 150MA SOT23-5
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		ABLIC
Series		S-1167
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs
Package / Case		SC-74A, SOT-753
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		150mA
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		900 nA
Voltage - Input (Max)		6.5V
Number of Regulators		1
Supplier Device Package		SOT-23-5
Voltage - Output (Min/Fixed)		4.2V
Control Features		Enable
PSRR		65dB (1kHz)
Voltage Dropout (Max)		0.21V @ 100mA
Protection Features		Over Current
Current - Supply (Max)		16 µA

RESOURCE TYPE		LINK
Datasheets		S-1167B42-M5T1G
Datasheets		Solder Plating Material Chg 10/Dec/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
