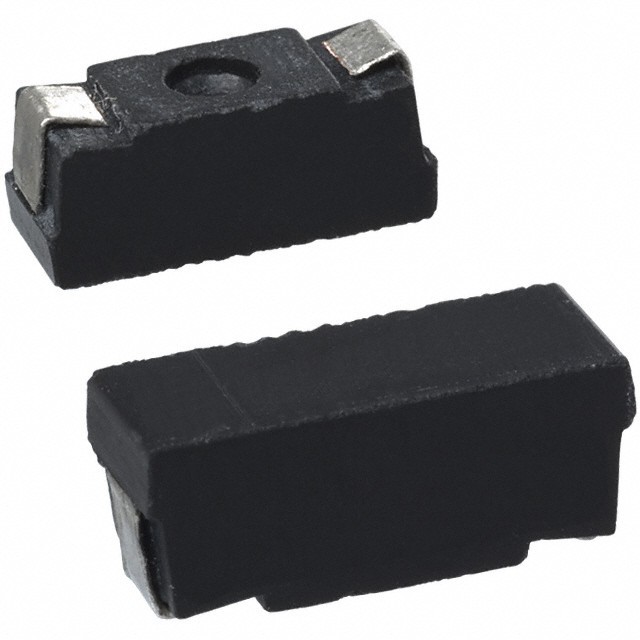

RW1S5CAR080JE

RW1S5CAR080JE

Part Number	RW1S5CAR080JE
Manufacturer	Ohmite
Other Part Numbers	RW1S5CAR080JE-ND
Description	RES 0.08 OHM 5% 1.5W J LEAD
Detailed Description	80 mOhms ±5% 1.5W Chip Resistor 3916 J-Lead Current Sense Wirewound
Manufacturer Standard Lead Time	34 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Ohmite
Series		RW
Packaging		Bulk
Part Status		Active
Power (Watts)		1.5W
Tolerance		±5%
Features		Current Sense
Package / Case		3916 J-Lead
Size / Dimension		0.394" L x 0.159" W (10.01mm x 4.04mm)
Composition		Wirewound
Operating Temperature		-55°C ~ 150°C
Number of Terminations		2
Supplier Device Package		SMD J-Lead, Pedestal
Height - Seated (Max)		0.164" (4.17mm)
Resistance		80 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RW1S5CAR080JE
Datasheets		RW "E" Series Material Declaration
Datasheets		Multiple Series Terminal Dimensions 24/Jan/2020
Datasheets		RW Series Bottom
Datasheets		RW Series End

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
