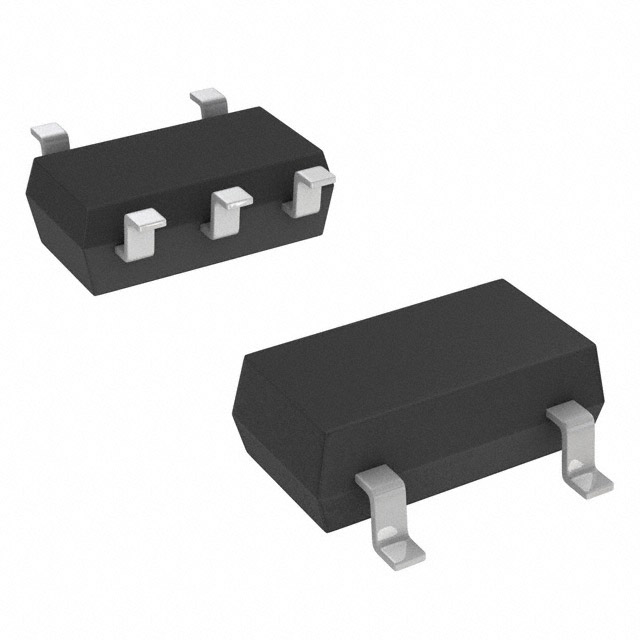

RT9706GB

Part Number
RT9706GB
Manufacturer Richtek
Other Part Numbers
1028-1083-2-ND
1028-1083-1-ND
1028-1083-6-ND
1028-1083-6
1028-1083-2
1028-1083-1
-RT9706GB
RT9706GB-ND
Description IC PWR SWITCH N-CHAN 1:1 SOT23-5
Detailed Description Power Switch/Driver 1:1 N-Channel 500mA SOT-23-5
Datasheet Datasheet

Product Attributes

Category
Manufacturer Richtek
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Features Status Flag
Package / Case SC-74A, SOT-753
Output Type N-Channel
Mounting Type Surface Mount
Number of Outputs 1
Interface On/Off
Switch Type USB Switch
Operating Temperature -40°C ~ 125°C (TJ)
Output Configuration High Side
Rds On (Typ) 100mOhm
Input Type Non-Inverting
Voltage - Load 2V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 500mA
Ratio - Input:Output 1:1
Supplier Device Package SOT-23-5
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO

Documents & Media

RESOURCE TYPE LINK
Datasheets RT9706GB
Datasheets RoHS Declaration
Datasheets Richtek REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
