RT8494GS _ LED Drivers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	RT8494GS
Manufacturer	Richtek
Other Part Numbers	RT8494GSTR-ND RT8494GSCT-ND RT8494GSDKR-ND RT8494GSTR RT8494GSCT RT8494GSDKR -RT8494GS
Description	IC LED DRIVER CTRLR PWM 14SOP
Detailed Description	LED Driver IC 1 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 14-SOP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) LED Drivers
Manufacturer		Richtek
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

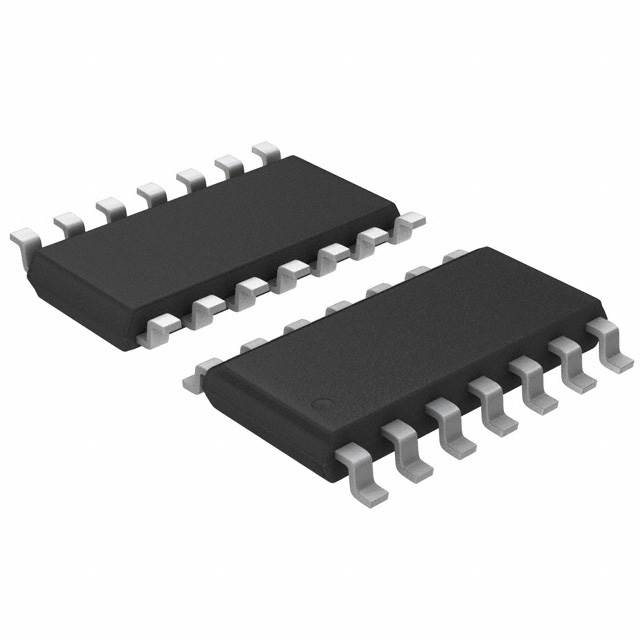

Package / Case		14-SOIC (0.154", 3.90mm Width)
Voltage - Output		90V
Mounting Type		Surface Mount
Number of Outputs		1
Frequency		100kHz ~ 1MHz
Type		DC DC Controller
Operating Temperature		-40°C ~ 125°C (TJ)
Applications		Backlight, Lighting
Internal Switch(s)		No
Topology		Step-Down (Buck), Step-Up (Boost)
Supplier Device Package		14-SOP
Dimming		Analog, PWM
Voltage - Supply (Min)		4.5V
Voltage - Supply (Max)		36V
Grade		Automotive
Qualification		AEC-Q100

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
