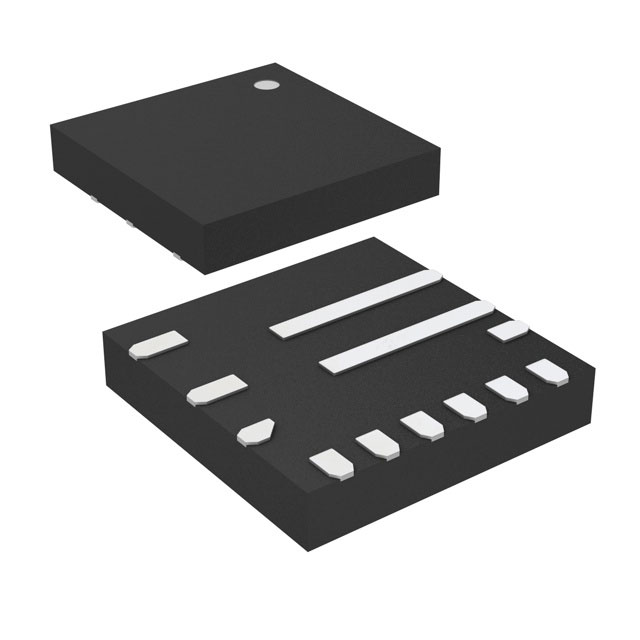

RT6258BHGQUF

Part Number
RT6258BHGQUF
Manufacturer Richtek
Other Part Numbers
1028-RT6258BHGQUFTR-ND
1028-RT6258BHGQUFCT-ND
1028-RT6258BHGQUFDKR-ND
1028-RT6258BHGQUFCT
1028-RT6258BHGQUFTR
1028-RT6258BHGQUFDKR
Description IC BUCK 23V 8A SYNC UQFN-12H(FC)
Detailed Description PMIC - Voltage Regulators - Linear Switching 2 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (1) 500kHz 12-UQFN-HL (3x3)
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Richtek
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 12-UFQFN
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C (TJ)
Voltage - Supply 4.5V ~ 23V
Frequency - Switching 500kHz
Topology Step-Down (Buck) Synchronous (1), Linear (LDO) (1)
Supplier Device Package 12-UQFN-HL (3x3)
Voltage/Current - Output 1 Adjustable, Fixed, 3.3V, 8A
Voltage/Current - Output 2 Adjustable, Fixed, 3.3V, 100mA
w/LED Driver No
w/Supervisor No
w/Sequencer No
Number of Outputs 2

Documents & Media

RESOURCE TYPE LINK
Datasheets RoHS Declaration
Datasheets Richtek REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2995

Can ship immediately.
