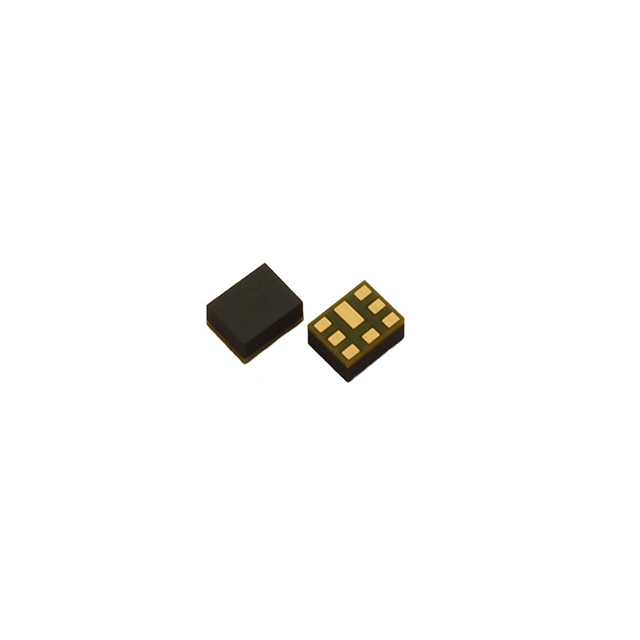

RSD-836.500-881.500-1814-TR

RSD-836.500-881.500-1814-TR

Part Number	RSD-836.500-881.500-1814-TR
Manufacturer	Raltron
Other Part Numbers	2151-RSD-836.500-881.500-1814-TR-ND 2151-RSD-836.500-881.500-1814-TRCT-ND 2151-RSD-836.500-881.500-1814-TRDKR-ND 2151-RSD-836.500-881.500-1814-TRDKR -2344-RSD-836.500.500-881.500-1814-TR 2151-RSD-836.500.500-881.500-1814-TRCT-ND 2151-RSD-836.500.500-881.500-1814-TR -2344-RSD-836.500.500-881.500-1814-TR-ND RSD-836.500.500-881.500-1814-TR 2151-RSD-836.500.500-881.500-1814-TRDKR 2151-RSD-836.500-881.500-1814-TRCT 2151-RSD-836.500-881.500-1814-TR 2151-RSD-836.500.500-881.500-1814-TRDKR-ND 2151-RSD-836.500.500-881.500-1814-TRCT 2151-RSD-836.500.500-881.500-1814-TR-ND -2344-RSD-836.500.500-881.500-1814-TRCT -2344-RSD-836.500-881.500-1814-TRCT -2344-RSD-836.500.500-881.500-1814-TRCT-ND
Description	RF DUPLEXER 836.5/881.5MHZ 8SMD
Detailed Description	RF Duplexer 824MHz ~ 849MHz / 869MHz ~ 894MHz 8-SMD, No Lead
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Multiplexers
Manufacturer		Raltron
Series		RSD
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SMD, No Lead
Mounting Type		Surface Mount
Type		Duplexer
Frequency Bands (Low / High)		824MHz ~ 849MHz / 869MHz ~ 894MHz
Low Band Attenuation (min / max dB)		45.00dB / 52.00dB
High Band Attenuation (min / max dB)		50.00dB / 60.00dB
Return Loss (Low Band / High Band)		1.4dB / 1.7dB

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RSD-836.500-881.500-1814-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 20

Can ship immediately.
