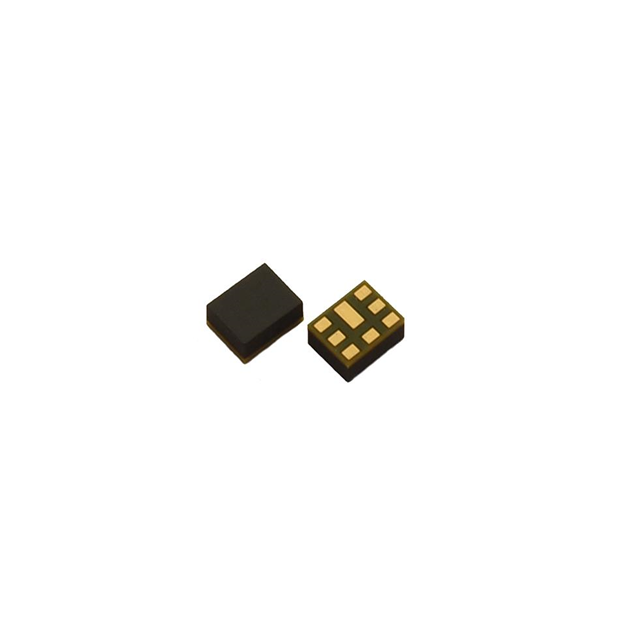

RSD-1747.500-1842.500-1814-TR-NS1

RSD-1747.500-1842.500-1814-TR-NS1

Part Number	RSD-1747.500-1842.500-1814-TR-NS1
Manufacturer	Raltron
Other Part Numbers	2151-RSD-1747.500-1842.500-1814-TR-NS1TR-ND 2151-RSD-1747.500-1842.500-1814-TR-NS1CT-ND 2151-RSD-1747.500-1842.500-1814-TR-NS1DKR-ND -2344-RSD-1747.500-1842.500-1814-TR-NS1TR 2151-RSD-1747.500-1842.500-1814-TR-NS1DKR 2151-RSD-1747.500-1842.500-1814-TR-NS1CT -2344-RSD-1747.500-1842.500-1814-TR-NS1TR-ND -2344-RSD-1747.500-1842.500-1814-TR-NS1CT 2151-RSD-1747.500-1842.500-1814-TR-NS1TR
Description	RF DUPLEXER 1.748/1.843GHZ 8SMD
Detailed Description	RF Duplexer 1.71GHz ~ 1.785GHz / 1.805GHz ~ 1.88GHz 8-SMD, No Lead
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Multiplexers
Manufacturer		Raltron
Series		RSD
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SMD, No Lead
Mounting Type		Surface Mount
Type		Duplexer
Frequency Bands (Low / High)		1.71GHz ~ 1.785GHz / 1.805GHz ~ 1.88GHz
Low Band Attenuation (min / max dB)		45.00dB / 54.00dB
High Band Attenuation (min / max dB)		45.00dB / 56.00dB
Return Loss (Low Band / High Band)		2.2dB / 2.5dB

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RSD-1747.500-1842.500-1814-TR-NS1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 9

Can ship immediately.
