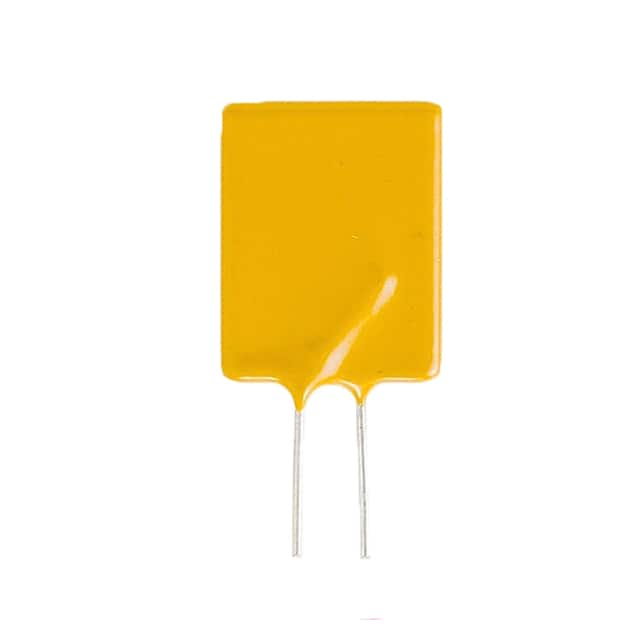

RS60SB-250 _ PTC Resettable Fuses_Circuit Protection

Part Number	RS60SB-250
Manufacturer	OptiFuse
Other Part Numbers	2298-RS60SB-250-ND 2298-RS60SB-250
Description	PTC RESET FUSE 60V 2.5A RADIAL
Detailed Description	Polymeric PTC Resettable Fuse 60V 2.5 A Ih Through Hole Radial, Disc
Datasheet	Datasheet

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		OptiFuse
Series		RS60SB
Packaging		Bulk
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.551" L x 0.118" W (14.00mm x 3.00mm)
Mounting Type		Through Hole
Type		Polymeric
Operating Temperature		-40°C ~ 85°C
Lead Spacing		0.201" (5.10mm)
Approval Agency		cURus
Current - Hold (Ih) (Max)		2.5 A
Current - Trip (It)		5 A
Voltage - Max		60V
Height - Seated (Max)		0.811" (20.60mm)
Current - Max		40 A
Time to Trip		15.6 s
Resistance - Initial (Ri) (Min)		40 mOhms
Resistance - Post Trip (R1) (Max)		140 mOhms

RESOURCE TYPE		LINK
Datasheets		RS60SB-250

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8535.10.0040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
