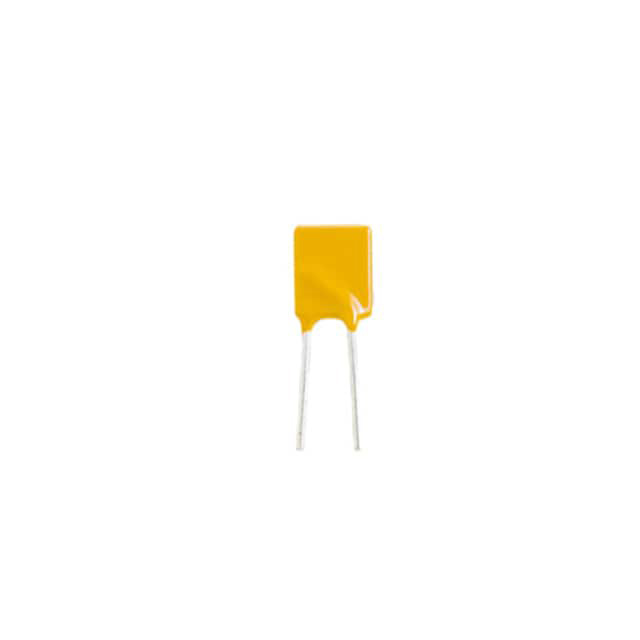

RS16-800 _ PTC Resettable Fuses_Circuit Protection

Part Number	RS16-800
Manufacturer	OptiFuse
Other Part Numbers	2298-RS16-800-ND 2298-RS16-800
Description	PTC RESET FUSE 16V 8A RADIAL
Detailed Description	Polymeric PTC Resettable Fuse 16V 8 A Ih Through Hole Radial, Disc
Datasheet	Datasheet

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		OptiFuse
Series		RS16
Packaging		Bulk
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.500" L x 0.118" W (12.70mm x 3.00mm)
Mounting Type		Through Hole
Type		Polymeric
Operating Temperature		-40°C ~ 85°C
Lead Spacing		0.201" (5.10mm)
Approval Agency		cULus, TUV
Current - Hold (Ih) (Max)		8 A
Current - Trip (It)		13.6 A
Voltage - Max		16V
Height - Seated (Max)		0.823" (20.90mm)
Current - Max		100 A
Time to Trip		9 s
Resistance - Initial (Ri) (Min)		5 mOhms
Resistance - Post Trip (R1) (Max)		18 mOhms

RESOURCE TYPE		LINK
Datasheets		RS16-800

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8535.10.0040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
