RS120-375

Part Number
RS120-375
Manufacturer OptiFuse
Other Part Numbers
2298-RS120-375-ND
2298-RS120-375

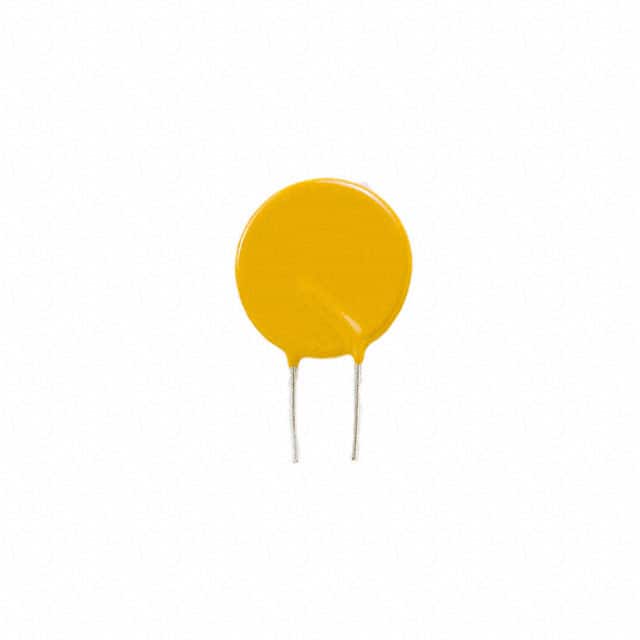

Description PTC RESET FUSE 120V 3.75A RADIAL
Detailed Description Polymeric PTC Resettable Fuse 120V (135V Int) 3.75 A Ih Through Hole Radial, Disc
Datasheet Datasheet

Product Attributes

Category
Manufacturer OptiFuse
Series
RS120
Packaging
Bulk
Part Status Active
Package / Case Radial, Disc
Size / Dimension 1.004" Dia x 0.161" T (25.50mm x 4.10mm)
Mounting Type Through Hole
Type Polymeric
Operating Temperature -40°C ~ 85°C
Lead Spacing 0.402" (10.20mm)
Approval Agency cUL, TUV, UL
Current - Hold (Ih) (Max) 3.75 A
Current - Trip (It) 7.5 A
Voltage - Max 120V (135V Int)
Height - Seated (Max) 1.339" (34.00mm)
Current - Max 20 A
Time to Trip 24 s
Resistance - Initial (Ri) (Min) 30 mOhms
Resistance - Post Trip (R1) (Max) 80 mOhms

Documents & Media

RESOURCE TYPE LINK
Datasheets RS120-375

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8535.10.0040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
