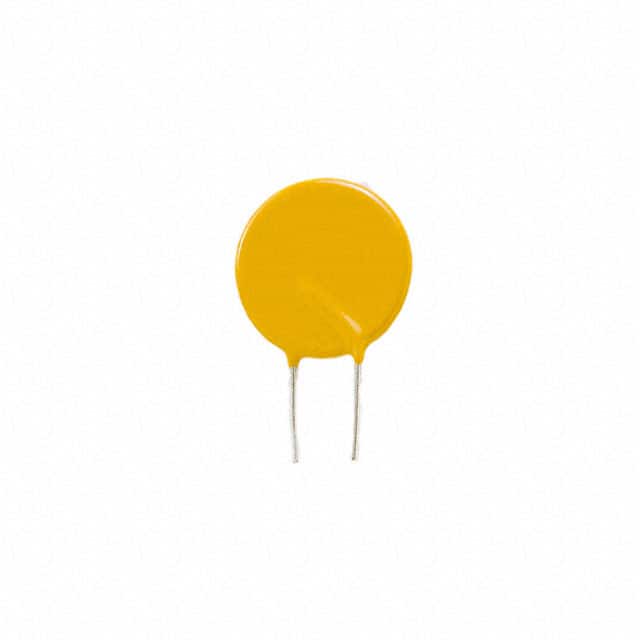

RS120-300 _ PTC Resettable Fuses_Circuit Protection

Part Number	RS120-300
Manufacturer	OptiFuse
Other Part Numbers	2298-RS120-300-ND 2298-RS120-300
Description	PTC RESET FUSE 120V 3A RADIAL
Detailed Description	Polymeric PTC Resettable Fuse 120V (135V Int) 3 A Ih Through Hole Radial, Disc
Datasheet	Datasheet

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		OptiFuse
Series		RS120
Packaging		Bulk
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.886" Dia x 0.161" T (22.50mm x 4.10mm)
Mounting Type		Through Hole
Type		Polymeric
Operating Temperature		-40°C ~ 85°C
Lead Spacing		0.402" (10.20mm)
Approval Agency		cUL, TUV, UL
Current - Hold (Ih) (Max)		3 A
Current - Trip (It)		6 A
Voltage - Max		120V (135V Int)
Height - Seated (Max)		1.181" (30.00mm)
Current - Max		17 A
Time to Trip		19.8 s
Resistance - Initial (Ri) (Min)		40 mOhms
Resistance - Post Trip (R1) (Max)		100 mOhms

RESOURCE TYPE		LINK
Datasheets		RS120-300

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8535.10.0040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
