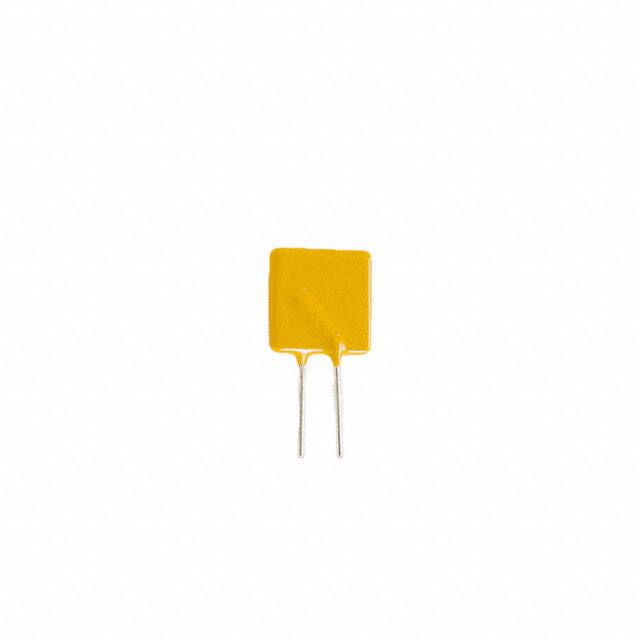

RS120-200 _ PTC Resettable Fuses_Circuit Protection

Part Number	RS120-200
Manufacturer	OptiFuse
Other Part Numbers	2298-RS120-200-ND 2298-RS120-200
Description	PTC RESET FUSE 120V 2A RADIAL
Detailed Description	Polymeric PTC Resettable Fuse 120V (135V Int) 2 A Ih Through Hole Radial, Disc
Datasheet	Datasheet

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		OptiFuse
Series		RS120
Packaging		Bulk
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.925" L x 0.161" W (23.50mm x 4.10mm)
Mounting Type		Through Hole
Type		Polymeric
Operating Temperature		-40°C ~ 85°C
Lead Spacing		0.201" (5.10mm)
Approval Agency		cUL, TUV, UL
Current - Hold (Ih) (Max)		2 A
Current - Trip (It)		4.2 A
Voltage - Max		120V (135V Int)
Height - Seated (Max)		1.098" (27.90mm)
Current - Max		20 A
Time to Trip		36 s
Resistance - Initial (Ri) (Min)		80 mOhms
Resistance - Post Trip (R1) (Max)		210 mOhms

RESOURCE TYPE		LINK
Datasheets		RS120-200

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8535.10.0040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
