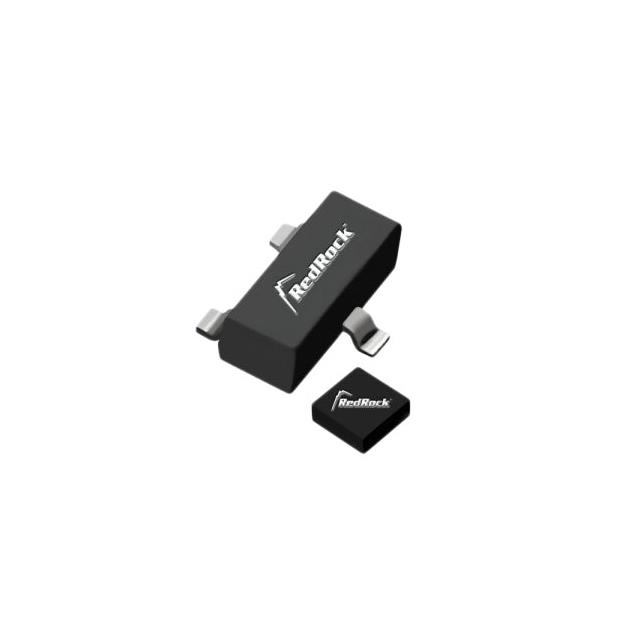

RR122-1F22-511

RR122-1F22-511

Part Number	RR122-1F22-511
Manufacturer	Coto Technology
Other Part Numbers	306-RR122-1F22-511TR-ND 306-RR122-1F22-511CT-ND 306-RR122-1F22-511DKR-ND 306-RR122-1F22-511CT 306-RR122-1F22-511TR 306-RR122-1F22-511DKR
Description	MAGNETIC SWITCH OMNIPOL SOT23-3
Detailed Description	Digital Switch Omnipolar Switch Push-Pull Magnetic, TMR (Tunneling Magnetoresistive) SOT-23-3
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Sensors, Transducers Magnetic Sensors Switches (Solid State)
Manufacturer		Coto Technology
Series		RedRock® RR122
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		TO-236-3, SC-59, SOT-23-3
Output Type		Push-Pull
Polarization		North Pole, South Pole
Mounting Type		Surface Mount
Function		Omnipolar Switch
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		1.7V ~ 5.5V
Technology		Magnetic, TMR (Tunneling Magnetoresistive)
Sensing Range		±7.0mT Trip, ±5.0mT Release
Current - Output (Max)		20mA
Current - Supply (Max)		100nA (Typ)
Supplier Device Package		SOT-23-3
Test Condition		25°C

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RR122-1F22-511
Datasheets		RoHS Cert
Datasheets		Coto REACH
Datasheets		Coto CA Prop65

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6072

Can ship immediately.
