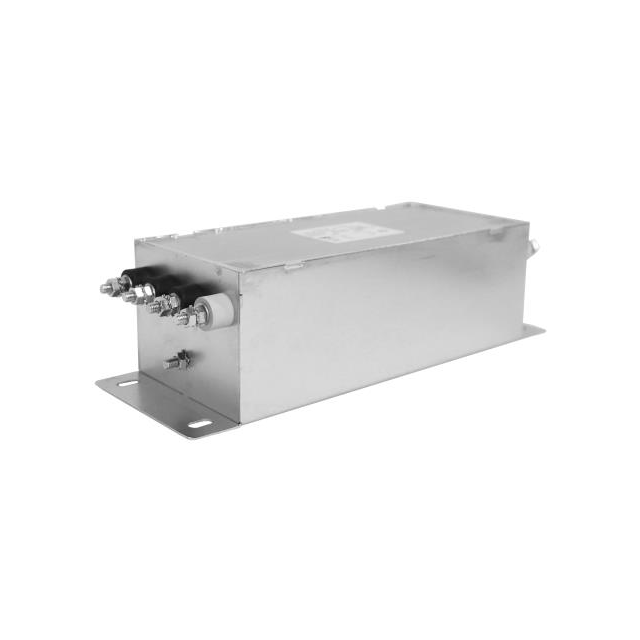

RP420-150-100-C

RP420-150-100-C

Part Number	RP420-150-100-C
Manufacturer	Astrodyne TDI
Other Part Numbers	3109-RP420-150-100-C-ND 3109-RP420-150-100-C
Description	LINE FILTER 480VAC 150A CHASSIS
Detailed Description	Three Phase (Wye) EMC/EMI Line Filter 150 A 480V 50/60Hz Two Stage Terminal Block
Datasheet	Datasheet

Product Attributes

Category		Filters Power Line Filter Modules
Manufacturer		Astrodyne TDI
Series		RP420
Packaging		Box
Part Status		Active
Filter Type		Three Phase (Wye)
Mounting Type		Chassis Mount
Configuration		Two Stage
Operating Temperature		-25°C ~ 100°C
Termination Style		Terminal Block
Applications		General Purpose
Approval Agency		CE, CSA, cURus, ENEC, SEMKO
Voltage - Rated AC		480V
Frequency - Operating		50/60Hz
Voltage - Rated AC (Phase to Ground/Neutral)		3.8 kV
Current		150 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RP420-150-100-C

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9530
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
