RP109K111D-TR _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	RP109K111D-TR
Manufacturer	RICOH/Nisshinbo Micro Devices
Other Part Numbers	RP109K111D-TR-ND
Description	IC REG LIN 1.1V 150MA DFN0808-4
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 150mA DFN(PL)0808-4
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		RICOH/Nisshinbo Micro Devices
Series		RP109x
Packaging		Tape & Reel (TR)
Part Status		Active

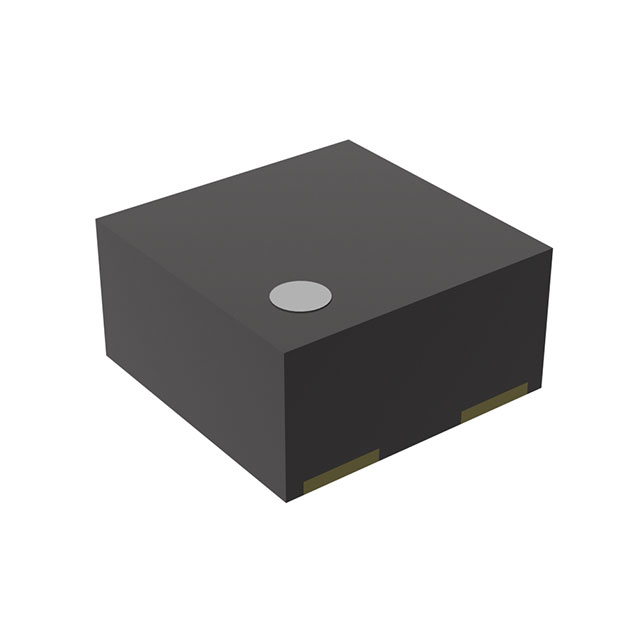

Package / Case		4-XFDFN Exposed Pad
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		150mA
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Current - Quiescent (Iq)		70 µA
Voltage - Input (Max)		5.25V
Number of Regulators		1
Supplier Device Package		DFN(PL)0808-4
Voltage - Output (Min/Fixed)		1.1V
Control Features		Enable
PSRR		75dB (1kHz)
Voltage Dropout (Max)		0.82V @ 150mA
Protection Features		Over Current

RESOURCE TYPE		LINK
Datasheets		RP109K111D-TR

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
