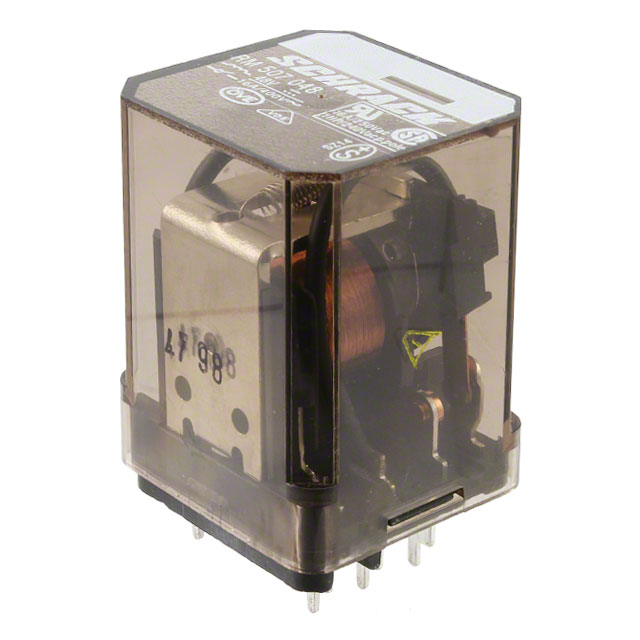

Part Number |
RM507048
|
---|---|
Manufacturer | TE Connectivity Potter & Brumfield Relays |
Other Part Numbers |
RM507048-ND
8-1393148-4
-RM507048-SI
|
Description | RELAY GEN PURPOSE DPST 16A 48V |
Detailed Description | General Purpose Relay DPST-NO (2 Form A) 48VDC Coil Through Hole |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Potter & Brumfield Relays | |
Series |
RM, SCHRACK
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Mounting Type | Through Hole | |
Coil Voltage | 48VDC | |
Operating Temperature | -45°C ~ 50°C | |
Termination Style | PC Pin | |
Approval Agency | cURus, VDE | |
Relay Type | General Purpose | |
Coil Current | 35.4 mA | |
Coil Type | Non Latching | |
Contact Material | Silver Cadmium Oxide (AgCdO) | |
Contact Form | DPST-NO (2 Form A) | |
Contact Rating (Current) | 16 A | |
Switching Voltage | 440VAC - Max | |
Must Release Voltage | 4.8 VDC | |
Must Operate Voltage | 36 VDC | |
Operate Time | 15 ms | |
Release Time | 5 ms | |
Load - Max Switching | 7040VA |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | RM series obsolete 02/MAR/2020 | |
Datasheets | Multiple Devices Product Improvement 23/Jan/2019 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.41.0050 | |
Moisture Sensitivity Level (MSL) | Not Applicable |
