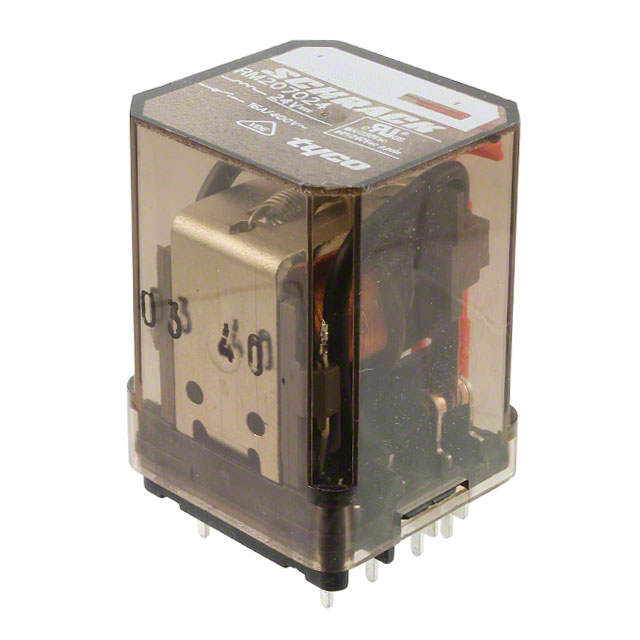

Part Number |
RM207024
|
---|---|
Manufacturer | TE Connectivity Potter & Brumfield Relays |
Other Part Numbers |
PB2139-ND
3-1393146-3
-RM207024-SI
RM207024-ND
PB2139
|
Description | RELAY GEN PURPOSE DPDT 16A 24V |
Detailed Description | General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Potter & Brumfield Relays | |
Series |
RM, SCHRACK
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Features | Mechanical Indicator | |
Mounting Type | Through Hole | |
Coil Voltage | 24VDC | |
Operating Temperature | -45°C ~ 70°C | |
Termination Style | PC Pin | |
Approval Agency | cURus, VDE | |
Relay Type | General Purpose | |
Coil Current | 50 mA | |
Coil Type | Non Latching | |
Contact Material | Silver Cadmium Oxide (AgCdO) | |
Contact Form | DPDT (2 Form C) | |
Contact Rating (Current) | 16 A | |
Switching Voltage | 440VAC - Max | |
Must Release Voltage | 2.4 VDC | |
Must Operate Voltage | 18 VDC | |
Operate Time | 15 ms | |
Release Time | 10 ms | |
Load - Max Switching | 7040VA |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | RM series obsolete 02/MAR/2020 | |
Datasheets | Multiple Devices Product Improvement 23/Jan/2019 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.41.0050 | |
Moisture Sensitivity Level (MSL) | Not Applicable |
