RLF100-11/12/2 _ DC Brushless Fans (BLDC)_Fans_Fans, Blowers, Thermal Management

Part Number	RLF100-11/12/2
Manufacturer	ebm-papst Inc.
Other Part Numbers	381-3133-ND RLF100-11/12/2-ND 381-3133

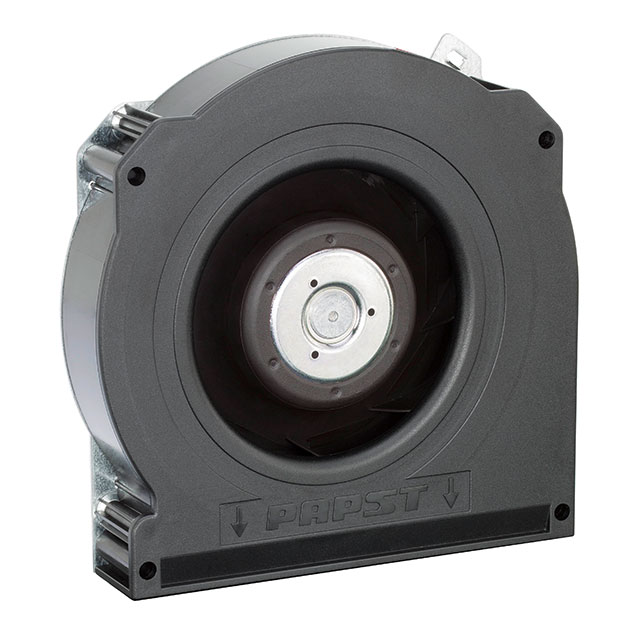

Description	FAN BLOWER CF 127X25MM 12VDC
Detailed Description	Fan Blower, Centrifugal 12VDC Square/Rounded - 127mm L x 127mm H Ball 24.2 CFM (0.678m³/min) 3 Wire Leads
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC)
Manufacturer		ebm-papst Inc.
Series		RLF100
Packaging		Bulk
Part Status		Active
Features		Speed Sensor (Tach)
Voltage - Rated		12VDC
Size / Dimension		Square/Rounded - 127mm L x 127mm H
Bearing Type		Ball
Current Rating (Amps)		0.720A
RPM		5100 RPM
Air Flow		24.2 CFM (0.678m³/min)
Width		25.00mm
Weight		0.672 lb (304.81 g)
Operating Temperature		-4 ~ 167°F (-20 ~ 75°C)
Voltage Range		8 ~ 15VDC
Termination		3 Wire Leads
Approval Agency		CCC, CE, CSA, UL, VDE
Ingress Protection		IP20
Lifetime @ Temp.		80000 Hrs @ 40°C
Fan Type		Blower, Centrifugal
Static Pressure		0.578 in H2O (144.0 Pa)
Power (Watts)		8.6 W

RESOURCE TYPE		LINK
Datasheets		RLF100-11/12/2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8414.59.6560
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
