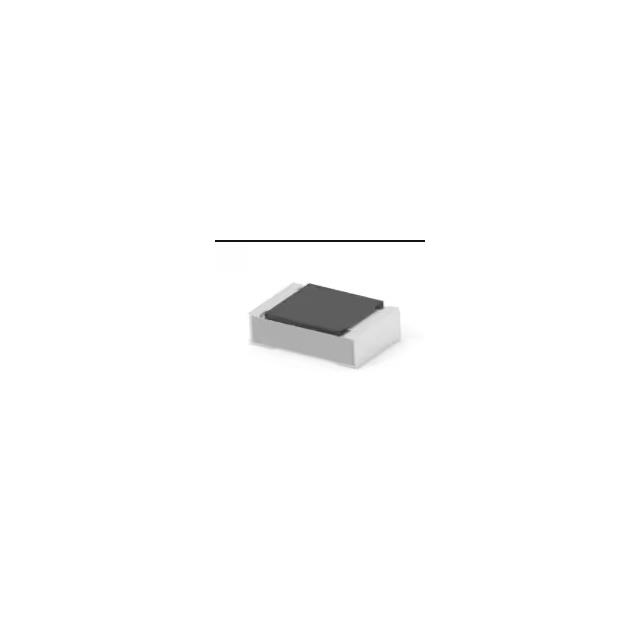

RLC73PH2AR143FTDF

RLC73PH2AR143FTDF

Part Number	RLC73PH2AR143FTDF
Manufacturer	TE Connectivity Passive Product
Other Part Numbers	1712-RLC73PH2AR143FTDFTR-ND 3-2176575-3 1712-RLC73PH2AR143FTDFTR
Description	RLC73PH 2A R143 1% 1K RL
Detailed Description	143 mOhms ±1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Current Sense Thick Film
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		TE Connectivity Passive Product
Series		RLC73, CGS
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		0.25W, 1/4W
Tolerance		±1%
Features		Current Sense
Package / Case		0805 (2012 Metric)
Temperature Coefficient		±100ppm/°C
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Composition		Thick Film
Operating Temperature		-55°C ~ 155°C
Number of Terminations		2
Supplier Device Package		0805
Height - Seated (Max)		0.026" (0.65mm)
Resistance		143 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RLC73PH2AR143FTDF

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
