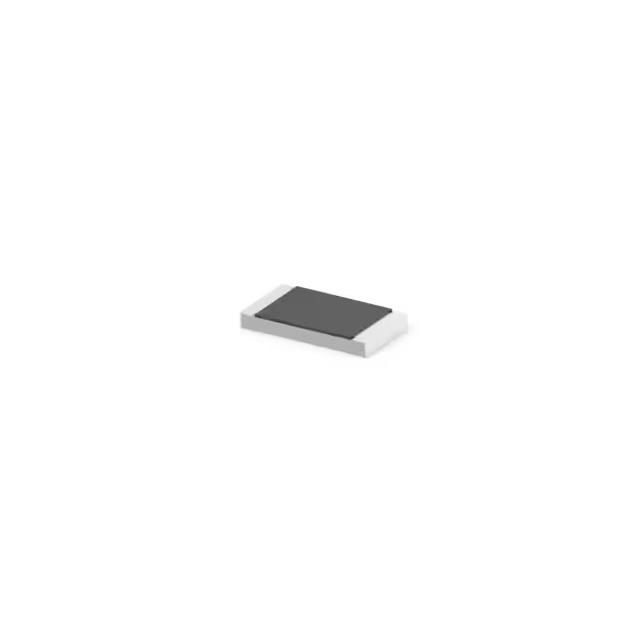

RLC73PD3AR536FTDG

RLC73PD3AR536FTDG

Part Number	RLC73PD3AR536FTDG
Manufacturer	TE Connectivity Passive Product
Other Part Numbers	1712-RLC73PD3AR536FTDGTR-ND 1712-RLC73PD3AR536FTDGCT-ND 1712-RLC73PD3AR536FTDGDKR-ND 1712-RLC73PD3AR536FTDGTR 9-2176605-5 1712-RLC73PD3AR536FTDGDKR 1712-RLC73PD3AR536FTDGCT
Description	RLC73PD 3A R536 1% 2K RL
Detailed Description	536 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Current Sense Thick Film
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		TE Connectivity Passive Product
Series		RLC73, GCS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Power (Watts)		2W
Tolerance		±1%
Features		Current Sense
Package / Case		2512 (6432 Metric)
Temperature Coefficient		±50ppm/°C
Size / Dimension		0.250" L x 0.122" W (6.35mm x 3.10mm)
Composition		Thick Film
Operating Temperature		-55°C ~ 155°C
Number of Terminations		2
Supplier Device Package		2512
Height - Seated (Max)		0.033" (0.84mm)
Resistance		536 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RLC73PD3AR536FTDG

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4000

Can ship immediately.
