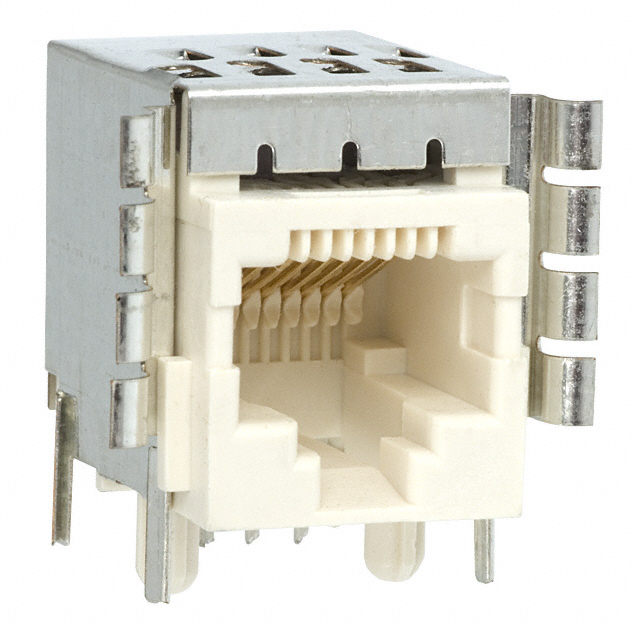

RJ45-8LCT1-S

Part Number	RJ45-8LCT1-S
Manufacturer	TE Connectivity Corcom Filters
Other Part Numbers	CCM1390-ND 1-1609211-0 1-6609211-0 CCM1390 CCM1390-NDR RJ458LCT1S
Description	CONN MOD JACK 8P8C R/A SHIELDED
Detailed Description	Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
Datasheet	Datasheet

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks
Manufacturer		TE Connectivity Corcom Filters
Series		L
Packaging		Bulk
Part Status		Obsolete
Features		Board Guide, Filter
Connector Type		Jack
Contact Finish		Gold
Mounting Type		Through Hole
Shielding		Shielded, EMI Finger
Orientation		90° Angle (Right)
Number of Positions/Contacts		8p8c (RJ45, Ethernet)
Termination		Solder
LED Color		Does Not Contain LED
Tab Direction		Down
Contact Finish Thickness		50.0µin (1.27µm)
Contact Material		Phosphor Bronze
Housing Material		Polyester, Glass Filled
Number of Ports		1
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		RJ45-8LCT1-S
Other Related Documents		Corcom EMI/RFI Filter Selector Chart
Product Training Modules		Modular Jack Portfolio
Featured Product		TE Connectivity - Modular Jack
Featured Product		Modular Jack Connectors
PCN Obsolescence/ EOL		Mult Devs - obsolete 13/SEP/2012
Product Drawings		RJ45-8LCT1-(B,S) Series

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
