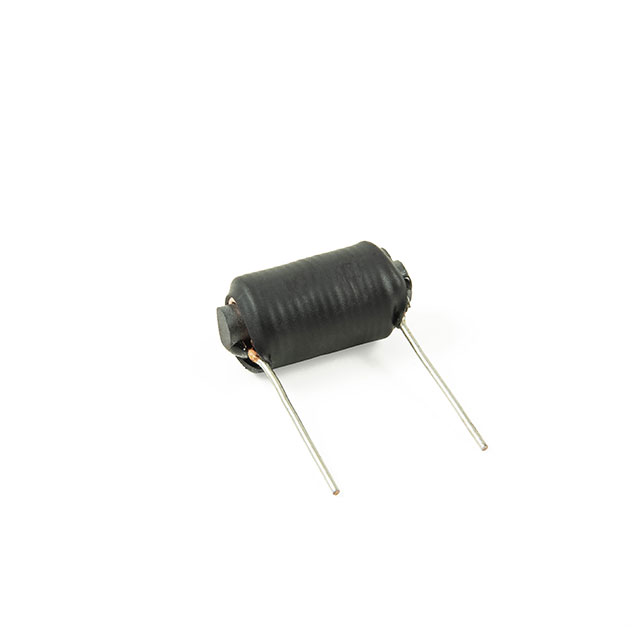

RHC50-5-100K-RC

RHC50-5-100K-RC

Part Number	RHC50-5-100K-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-RHC50-5-100K-RC-ND 3475-RHC50-5-100K-RC
Description	10UH 10% RADIAL HEIGHT CURRENT
Detailed Description	10 µH Unshielded Inductor 5 A 15mOhm Max Radial, Horizontal Cylinder
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series
Packaging		Box
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Horizontal Cylinder
Size / Dimension		0.640" Dia x 1.123" L (16.26mm x 28.52mm)
Mounting Type		Through Hole
Shielding		Unshielded
Operating Temperature		-55°C ~ 105°C
DC Resistance (DCR)		15mOhm Max
Frequency - Self Resonant		20MHz
Current - Saturation (Isat)		18A
Inductance Frequency - Test		1 kHz
Supplier Device Package		Radial, Horizontal Cylinder
Inductance		10 µH
Current Rating (Amps)		5 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RHC50-5-100K-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
