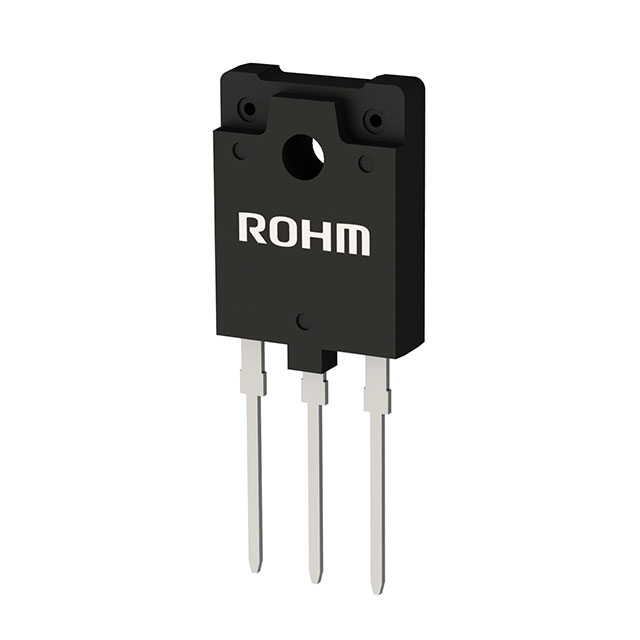

RGW50TK65GVC11 _ Single IGBTs_IGBTs_Transistors_Discrete Semiconductor Products

Part Number	RGW50TK65GVC11
Manufacturer	ROHM Semiconductor
Other Part Numbers	846-RGW50TK65GVC11-ND 846-RGW50TK65GVC11CT 846-RGW50TK65GVC11CT-ND 846-RGW50TK65GVC11CTINACTIVE 846-RGW50TK65GVC11DKR 846-RGW50TK65GVC11TR 846-RGW50TK65GVC11DKR-ND 846-RGW50TK65GVC11DKRINACTIVE 846-RGW50TK65GVC11 846-RGW50TK65GVC11TR-ND
Description	IGBT TRNCH FIELD 650V 30A TO3PFM
Detailed Description	IGBT Trench Field Stop 650 V 30 A 67 W Through Hole TO-3PFM
Manufacturer Standard Lead Time	22 weeks

Category		Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Manufacturer		ROHM Semiconductor
Series
Packaging		Tube
Part Status		Active
Package / Case		TO-3PFM, SC-93-3
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 175°C (TJ)
Input Type		Standard
Vce(on) (Max) @ Vge, Ic		1.9V @ 15V, 25A
Supplier Device Package		TO-3PFM
IGBT Type		Trench Field Stop
Td (on/off) @ 25°C		35ns/102ns
Switching Energy		390µJ (on), 430µJ (off)
Test Condition		400V, 25A, 10Ohm, 15V
Gate Charge		73 nC
Current - Collector (Ic) (Max)		30 A
Voltage - Collector Emitter Breakdown (Max)		650 V
Current - Collector Pulsed (Icm)		100 A
Power - Max		67 W

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
