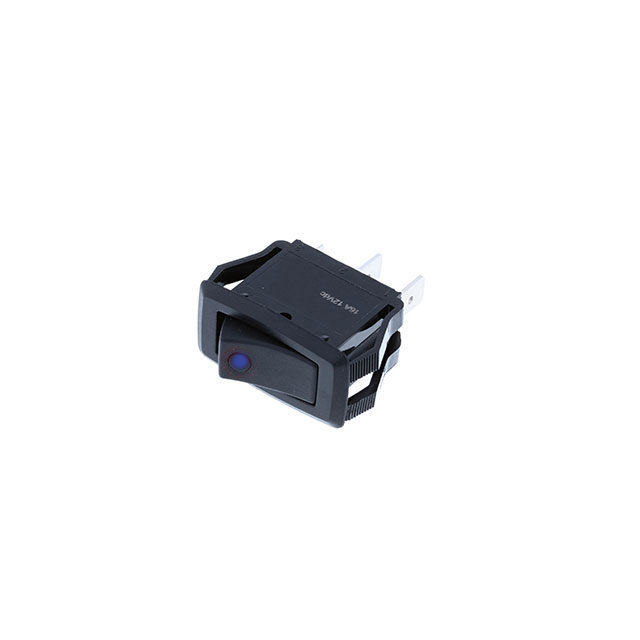

RG2-1A-DC-1-UL

RG2-1A-DC-1-UL

Part Number	RG2-1A-DC-1-UL
Manufacturer	Switch Components
Other Part Numbers	2299-RG2-1A-DC-1-UL-ND 2299-RG2-1A-DC-1-UL
Description	SWITCH ROCKER SPST 16A 12V
Detailed Description	Rocker Switch SPST 16A (DC) Panel Mount, Snap-In
Datasheet	Datasheet

Product Attributes

Category		Switches Rocker Switches
Manufacturer		Switch Components
Series		RG2
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		16A (DC)
Mounting Type		Panel Mount, Snap-In
Circuit		SPST
Switch Function		On-Off
Operating Temperature		-25°C ~ 85°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Illumination Type, Color		LED, Blue
Illumination Voltage (Nominal)		12 VDC
Actuator Type		Concave (Curved) - Illuminated
Approval Agency		CSA, cURus, ENEC
Panel Cutout Dimensions		Rectangular - 27.60mm x 13.80mm
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - DC		12 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RG2-1A-DC-1-UL

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
