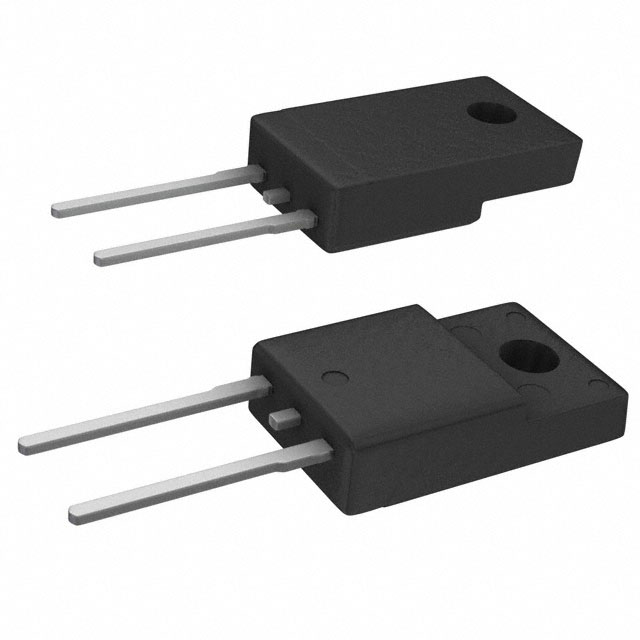

RFX10TF6S

RFX10TF6S

Part Number	RFX10TF6S
Manufacturer	ROHM Semiconductor
Other Part Numbers	RFX10TF6S-ND
Description	DIODE GEN PURP 600V 10A TO220NFM
Detailed Description	Diode 600 V 10A Through Hole TO-220NFM

Product Attributes

Category		Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Manufacturer		ROHM Semiconductor
Series
Packaging		Tube
Part Status		Not For New Designs
Package / Case		TO-220-2 Full Pack
Mounting Type		Through Hole
Speed		Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)		30 ns
Technology		Standard
Current - Average Rectified (Io)		10A
Supplier Device Package		TO-220NFM
Operating Temperature - Junction		150°C (Max)
Voltage - DC Reverse (Vr) (Max)		600 V
Voltage - Forward (Vf) (Max) @ If		2.5 V @ 10 A
Current - Reverse Leakage @ Vr		10 µA @ 600 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 936

Can ship immediately.

Not recommended for new design, minimums may apply.
